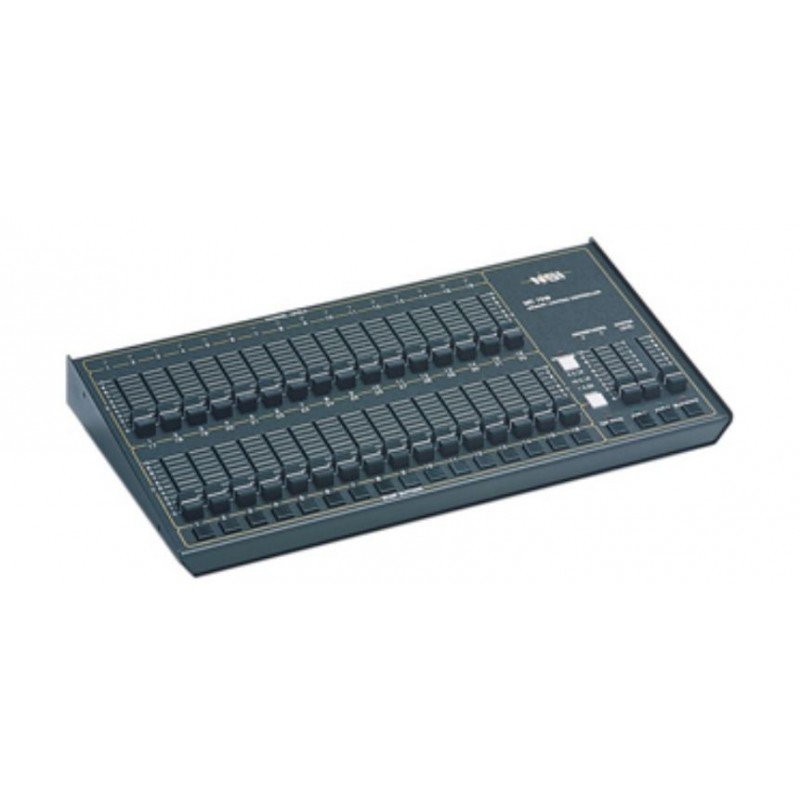

Rental Leviton/NSI MC7016 Microplex Conventional Controller - 16 or 32 Channels - Not for LEDs

16/32 channel console, 2 manual presets, 16 memory scene, NSI micro-plex.

The MC 7000 Series lighting consoles are simple and flexible with three operating modes. These consoles provide standard 2-scene preset operation, single scene wide mode for double channel capacity and memory scene operation mode. The MC 7000 Series is particularly well-suited to small theaters and stage performances. These products are so easy to program and operate, the instructions are silk-screened on the back of the units.

Features

  • Individual Control Channels
  • 2-Scene Preset or Single Scene Operation (wide mode)
  • Dual Split Dipless Crossfaders
  • Individual Channel Bump Buttons
  • User Programmable Memory Scenes
  • User Programmable Chase Functions
  • Chase Rate Control (tap button)
  • Grand Master
  • NSI Micro-Plex Control Signal (3-pin XLR)
  • Optional DMX512 Digital Control (5-pin XLR)



Specifications

Mechanical Specifications
  • Handles: 16
  • Output: DMX and MPX

Product Features
  • Audio Input: No
  • Circuits/Channels: 16/32
  • Control Style: MPX
  • DMX Channels: 512
  • Memory Scene: 16
  • Product Category: Controls

Electrical Specifications
  • Voltage: 12 VDC
