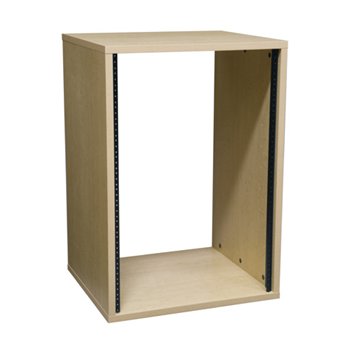

Middle Atlantic MBRK Series Wood Rack - 20U, 18 Deep - Maple

  • Ready-to-assemble design allows for flat shipment via UPS
  • Easily assembled with included hardware
  • Includes 10-32 threaded front rackrail
Specifications

General Info
  • Finish: Maple Melamine
Assembly/Installation Information
  • Assembly Required: Yes
Listing Agencies/Third Party Certifications
  • RoHS: Yes
  • Greenguard: Yes
Dimensions
  • Usable Depth: 17.41
  • Usable Height: 35
  • Capacity Weight (US): 200
  • Depth (US): 17.91
  • Height (US): 36.63
  • Width (US): 20.7
  • Rack Units: 20
Technical Information
  • Rackrail Type: 10-32
  • Static Load Capacity: 200
  • Material: Wood
  • Mounting: Horizontal

EIA compliant Wooden Studio Rack shall be Middle Atlantic Products model # MBRK20. MBRK20 shall have 20 useable rackspaces with a 36.63" overall height. MBRK20 shall have a 17.91” depth. Studio rack shall be constructed of 3/4” furniture grade MDF board and shall feature a high quality maple wood grain laminate finish. Rackrail shall be equipped with one set of 11-gauge steel with tapped 10-32 holes in universal EIA spacing. Assembly hardware shall be joint connector screws. Studio rack shall be rated to 200 lb. weight capacity. Studio rack shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Studio Rack shall be RoHS EU Directive 2002/95/EC compliant. Studio rack shall be manufactured by an ISO 9001 and ISO 14001 registered company. Studio rack shall be warrantied to be free from defects in material or workmanship under normal use and conditions for a period of 7 years.
