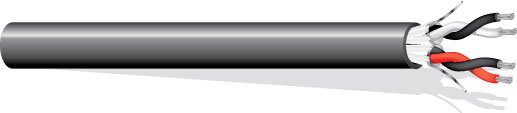

West Penn Wire AQC430-GY AquaSeal Line Level Audio, Stranded, Shielded, 22 gauge, Gray - per foot
CONSTRUCTION & DIMENSIONS |
- |
CONDUCTOR PARAMETER |
- |
• Number of Pairs |
2 |
• AWG Size |
22 |
• Conductor Stranding |
7x30 |
• Conductor Type |
Bare copper |
• Nominal DCR |
17 Ohm/1000ft |
INSULATION PARAMETER |
- |
• Insulation Type |
PVC |
• Insulation Thickness |
0.01 in |
• Insulation Color Code |
1. Black/Red-Red 2. Black/White-White |
SHIELDING PARAMETER |
- |
• Shield Type |
Individually Shielded |
• Shield Type 2 |
Aquaseal Water Blocking Tape |
• Drain Wire Type |
Tinned Copper |
• Drain Wire AWG |
24 AWG |
ELECTRICAL CHARACTERISTICS |
- |
• Nom. Cap. Between Conductors |
55 pF/ft |
• Nom. Cap. Conductor to Shield |
99 pF/ft |
OVERALL CONSTRUCTION PARAMETERS |
- |
Total Number of Conductors |
4 |
Jacket Type |
UV Resistant PVC |
Jacket Thickness |
0.025 in |
Nominal Cable O.D. |
0.250 in |
Plenum |
No |
NEC UL Rating |
CM, CL3 |
RoHS Compliant |
Yes |
TIA Test |
TIA455-82 Water Penetration Test |
Pull Tension |
60 lbs |
Bend Radius |
3.42 in |
Cable Weight per 1000' spool |
29 lbs |
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS |
- |
UL Flammability |
UL1685 |
Operating Range |
-20 to 60 Deg C |
UL Voltage Rating |
300 |
