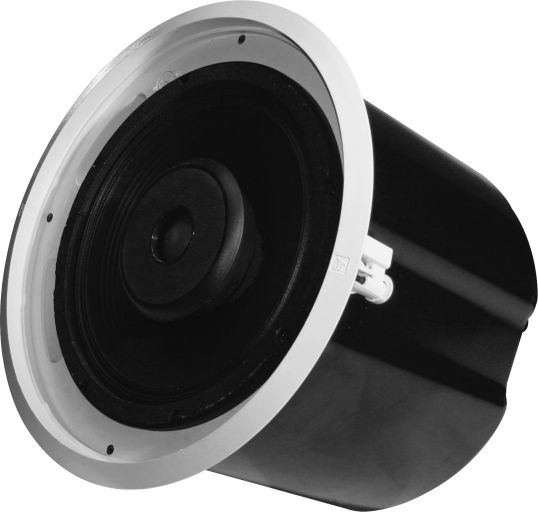

Electro-Voice EVID C12.2 - Passive 12", 2-Way Ceiling Speaker
The Electro-Voice EVID C12.2 is a passive 12" in-ceiling loudspeaker system with a multi-tap transformer designed to deliver reliable voice and music reproduction in waiting rooms, offices, retail stores, restaurants, and more. When driven by your 70V, 100V, or 8-Ohm power amplifier (available separately), this two-way speaker provides a power capacity of 100W RMS. The EVID C12.2 is equipped with a 12" coaxial transducer capable of efficiently covering frequencies from 85 Hz to 18 kHz.
An internal 2 kHz network ensures bandwidth distribution to the speaker components. The built-in 64W transformer offers automatic saturation compensation, and accommodates a range of taps, selectable via a convenient switch on the ABS baffle. The removable Euroblock connector, tile bridge, mounting ring, cutout template, and paint shield contribute to easy installation.
- Passive Design
- 12" Coaxial Transducer
- 100W RMS Power Handling at 8 Ohms
- For 70V, 100V, or 8-Ohm Power Amplifiers
Mounting Options
Built-In Transformer
Optimal Volume
The rear enclosure is made of heavy-gauge steel and painted black so it disappears into the background. It also provides an optimal internal volume for extended low-frequency performance.
Specifications
- Passive
- Driver: 12" / 30.5 cm EVID 920-8B Coaxial Transducer
- Frequency Range: 65 Hz to 20 kHz (-10 dB)
- Frequency Response: 85 Hz to 18 kHz (-3 dB)
- Power Capacity:
- At 8 Ohms: 100 W RMS
- At 70/100 V: Up to 64 W
- Maximum Sound Pressure Level (SPL): 126 dB
- Axial Sensitivity: 100 dB SPL (1 W / 1 m)
- Nominal Impedance: 8 Ohms (Transformer Bypass)
- Transformer Taps:
- Watts at 70 V: 4, 8, 16, 32, or 64 with Automatic Saturation Compensation
- Watts at 100 V: 8, 16, 32, or 64 with Automatic Saturation Compensation
- Bypass: 8 Ohms
- Crossover:
- Crossover Frequency: 2 kHz
- Recommended High-Pass Frequency: 60 Hz
- Construction:
- Material Baffle/Bezel: UL 94V-O Rated ABS
- Backcan: Powder-Coated Steel
- Grille: Perforated Powder-Coated Steel
- Inputs: Removable 4-Pin Euroblock with Screw Terminals and Loop-Thru
- Maximum Wire Gauge: 12 AWG
- Mounting System:
- 4-Point Toggle Anchors
- 3-Point Pendant Mount
- 3/8" Threaded Rod
- Additional Secondary Mount
- Cutout Diameter: 15.4" / 39 cm
- Dimensions (Diam. x Depth): 16.3 x 13.1" / 41.4 x 33.3 cm
- Weight: 29.3 lb / 13.3 kg
