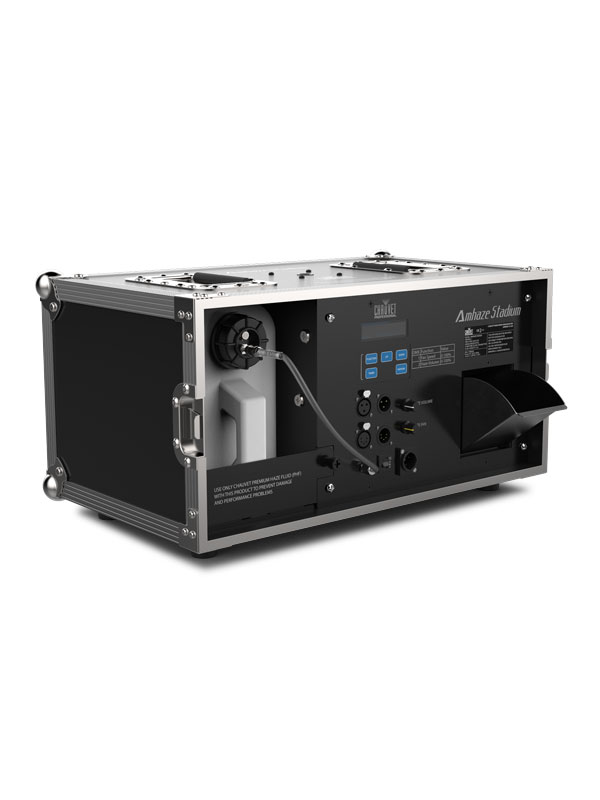

Chauvet Professional Amhaze Stadium 2X IP

A rugged and compact outdoor-rated hazer in a self-contained flight case that stacks easily and conveniently packs all accessories in its removable cover. Amhaze Stadium 2X IP features a full-color display and precise manual or DMX adjustment of its variable haze output and blower speed. Floor mount or install into the rig with standard truss mounting brackets, and then direct haze flow with its adjustable output nozzle.

Amhaze Stadium 2X IP is built for the rigors of touring with a design that delivers reliability, longevity and easy serviceability. An innovative heater system produces continuous output and minimizes maintenance, while a peristaltic pump eliminates contact with fluid, removing its risk of corrosion. A USB-C port for easy software upgrades in the field completes this fully featured professional unit.


Features

  • Professional Haze Quality: This compact unit produces high-quality, even haze ideal for enhancing live lighting effects.
  • Outdoor Use Ready: The hazer is designed for safe and reliable operation during temporary outdoor or wet-weather events.
  • Continuous High Output: Delivers uninterrupted haze output powerful enough to fill medium to large-sized venues.
  • Serviceable Heater Assembly: The innovative heater assembly is fully serviceable with a replaceable core, ensuring maximum efficiency, longevity, and easy maintenance.
  • Clog-Resistant Technology: An innovative heater design significantly reduces clogging for smooth, reliable operation with minimal maintenance.
  • Directional Haze Control: An adjustable vent louver allows you to precisely direct the flow of haze where it is needed most.
  • Integrated Flight Case: It ships in a rugged, tour-ready flight case that includes a removable cover and convenient accessory storage.
  • Standard Mounting Compatibility: The unit is compatible with standard Omega mounting brackets for quick, easy, and secure installation.
  • Versatile Haze Control: Precisely adjust haze output and blower speed using DMX or the onboard manual control knobs.


Specifications

Dynamic Effects

Fan Performance: 164 cfm
Low Fluid Shutdown: Yes


Construction/Physical

Dimensions: 26 x 16 x 6.75 in (660 x 406 x 171.45 mm)
Weight: 48.8 lb (22.13 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer, Steel
Tank Capacity: 1.32 gal (5 l)
Fluid Consumption: 9.5 ml/min
Maximum Runtime: 8 hrs


Connections

Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Firmware upgrades: USB type-C


Control

Control Protocol: DMX, RDM
DMX Channels: 2
Modes/Personalities: 1 personality (2ch)
On-Board Control: Yes


Electrical

Input Voltage (Electrical Detail): 120 VAC, 60 Hz
Input Voltage (Electrical Detail 2): 230 VAC, 50 Hz
Power and Current (Electrical Detail): 511 W, 4.26 A @ 120 V, 60 Hz
Power and Current (Electrical Detail 2): 722 W, 3.14 A @ 230 V, 50 Hz [1.2 A inrush]
Heat-up Time: 6 min
Fuse (120V model): F8 A, 250 V
Fuse (230V model): F5 A, 250 V


Certifications/Qualifications

Certifications: CE, UKCA
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


Required Accessories

Accessories (required): Fog Fluid-PHF
Compatible Mounting Options: M12 / ½” hole with mounting brackets (clamps)


Compatible Accessories

Neutrik powerKON cables
DMX Cables


What's Included

Amhaze Stadium II IP
Seetronic IP 65 Powerkon power cord
2x Mounting brackets
Output nozzle assembly
Front Cover
