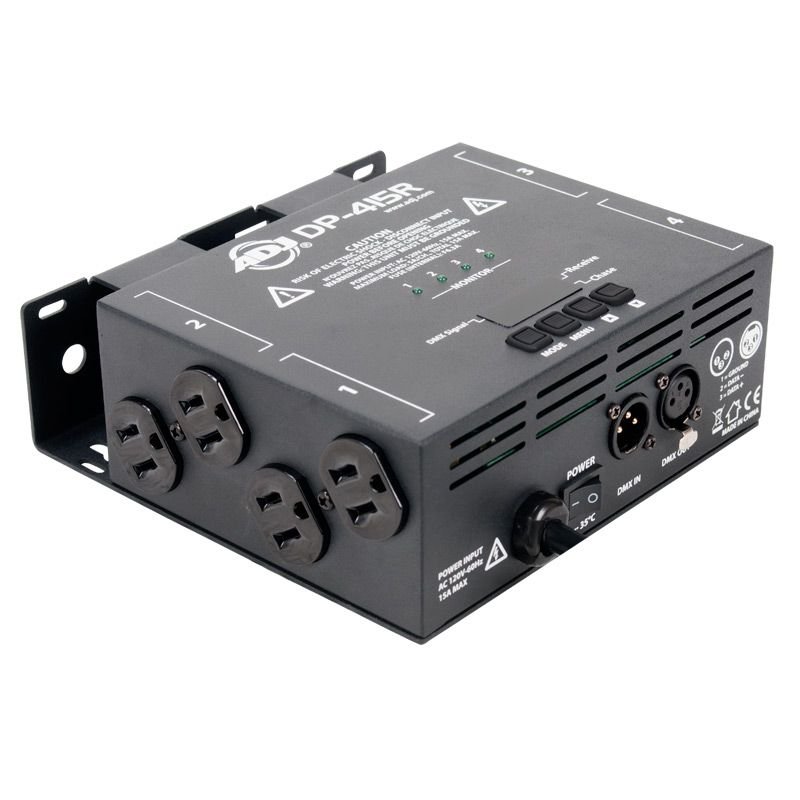

ADJ DP 415R Dimmer Pack

The ADJ DP-415R is a compact, portable 4-channel DMX dimmer/switch pack that has eight 3-prong 15 Amp Edison socket (2 for each channel) allowing you to be able to control up to 8 fixtures. The pack has a 4-button digital display menu and is RDM (Remote Device Management) compliant.

The hanging bracket is reversible to give you flexibility when installing this product to either a hanging bracket or on a truss and it can also be used with a clamp. It is also wall mountable. Also to make this product easier to use we incorporated LED "ON" indicators and a DMX signal indicator LED is also incorporated so that when DMX signal is present, the LED illuminates.

  • Compact 4-Channel DMX Dimmer/Switch Pack
  • 2x 3-prong Edison plugs per channel (8 total plugs)
  • On/Off power switch
  • 3-pin DMX In/Out
  • Digital Display with 4 Menu Control Buttons
  • Supports RDM (Remote Device Management)
  • Assign as a dimmer pack or switch pack
  • Changeable hanging bracket to hang on truss
  • Wall mountable
  • LED “On” indications
  • Max Power: 15A Total, 5A per channel  (120V)
  • Dimensions (LxWxH): 10.25” x 8.25” x 3” / 260x209x76mm
  • Weight: 6 lbs./2.72 kgs.
