Elation Aria WDS Wireless DMX Tranceiver IP65
Elation Aria Wireless DMX

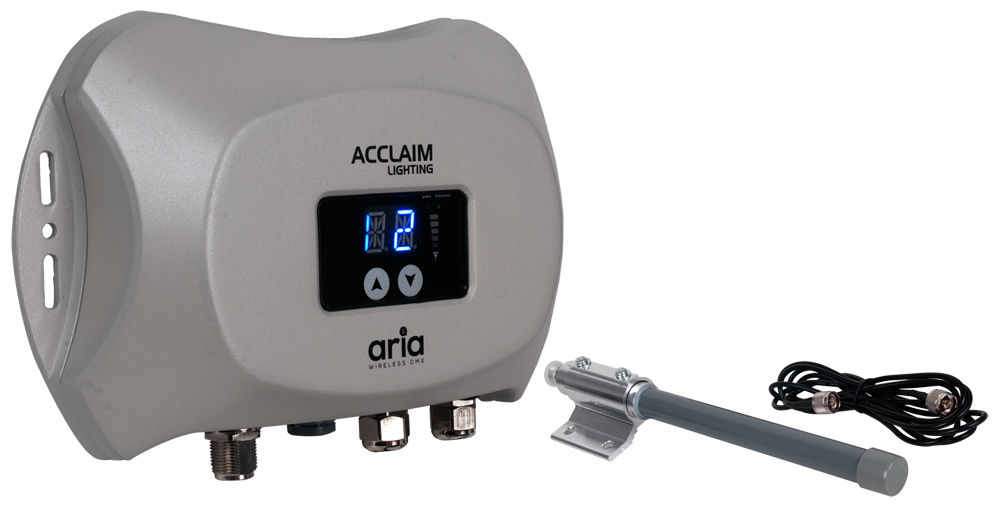

The Aria Wireless DMX system is a compact, local, outdoor-rated wireless DMX system. The Aria transceiver can act as either the sending or receiving point, and you can select up to 15 channels on the 2.4 GHz band. The internal wireless radio features both automatic networking and signal routing optimization to ensure the best possible reception of DMX data. A 5dB, omni-directional antenna is included, which provides transmission up to 2600’ line of sight and 300’ between obstructions and walls. Aria can also make a direct connection (without the need for an additional unit) to fixtures containing the Elation E-FLY receiver.
Features
The Aria Wireless DMX system is a compact, local, outdoor-rated wireless DMX system. The Aria transceiver can act as either the sending or receiving point, and you can select up to 15 channels on the 2.4 GHz band. The internal wireless radio features both automatic networking and signal routing optimization to ensure the best possible reception of DMX data. A 5dB, omni-directional antenna is included, which provides transmission up to 2600’ line of sight and 300’ between obstructions and walls. Aria can also make a direct connection (without the need for an additional unit) to fixtures containing the Elation E-FLY receiver.
Specifications
CONTROL
Wireless Protocol: 2.4 GHz, IEEE 802.15.4, 15 selectable channels
Estimated Transmission Distance: 2600’ (792m) line of sight, 300’ (91m) between obstructions and walls
Data Encryption: AES 128-bit
DMX Universes: One per transceiver, maximum of 8 simultaneously
Max number of transceivers: Up to 250 (limited to ensure optimum data transmission)
Included Antenna: 5dB, includes direct attachment adapter and 9’ extension cable
DIMENSIONS
Length: 2.2 in (55mm)
Width: 9.1 in (231.6mm)
Height: 6.2in (157.7mm)
Weight: 3.96 lbs. (1.8 kg)
ELECTRICAL
AC 100-240VAC, 277VAC 50/60Hz
3W Power Consumption
-40°F to 122°F (-40°C to 50°C)
APPROVALS / RATINGS
CE | cETLus | IP66
Specifications and documentation subject to change without notice.
