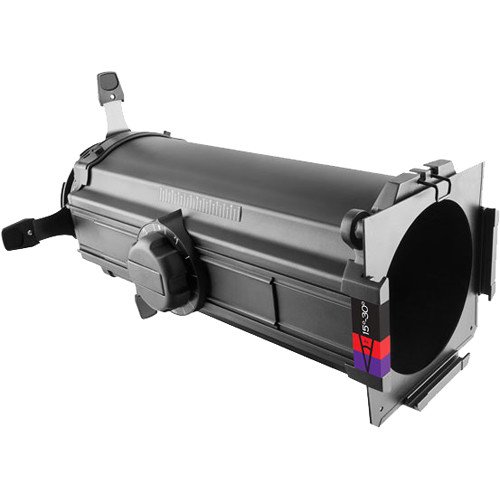

Chauvet Professional OHDZOOM1530 Ovation Lens - 15-30 Zoom
|
|
Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures as well as my other standard ERS-style fixtures. Lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigors of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.
Features:
- Variable focal length lens tube for the Ovation E-Series fixtures
- Independent adjustment for beam angle and focal point
- Dual aspheric lenses provide precise focus for crisp gobo projection
- Integrated gel frame holder and gel frame included
- Includes replacement fixture yoke for better balance and more positioning support
Specifications:
Optical
- Installed Optics: 15°–30°
Construction / Physical
- Dimensions (15°–30°): 9.4 x 8.5 x 20.6 in (239 x 215 x 523 mm)
- Weight (15°–30°): 14 lb (6.35 kg)
- Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Certifications / Qualifications
- IP Rating: IP20, dry location
What's Included
- OEZOOM1530
