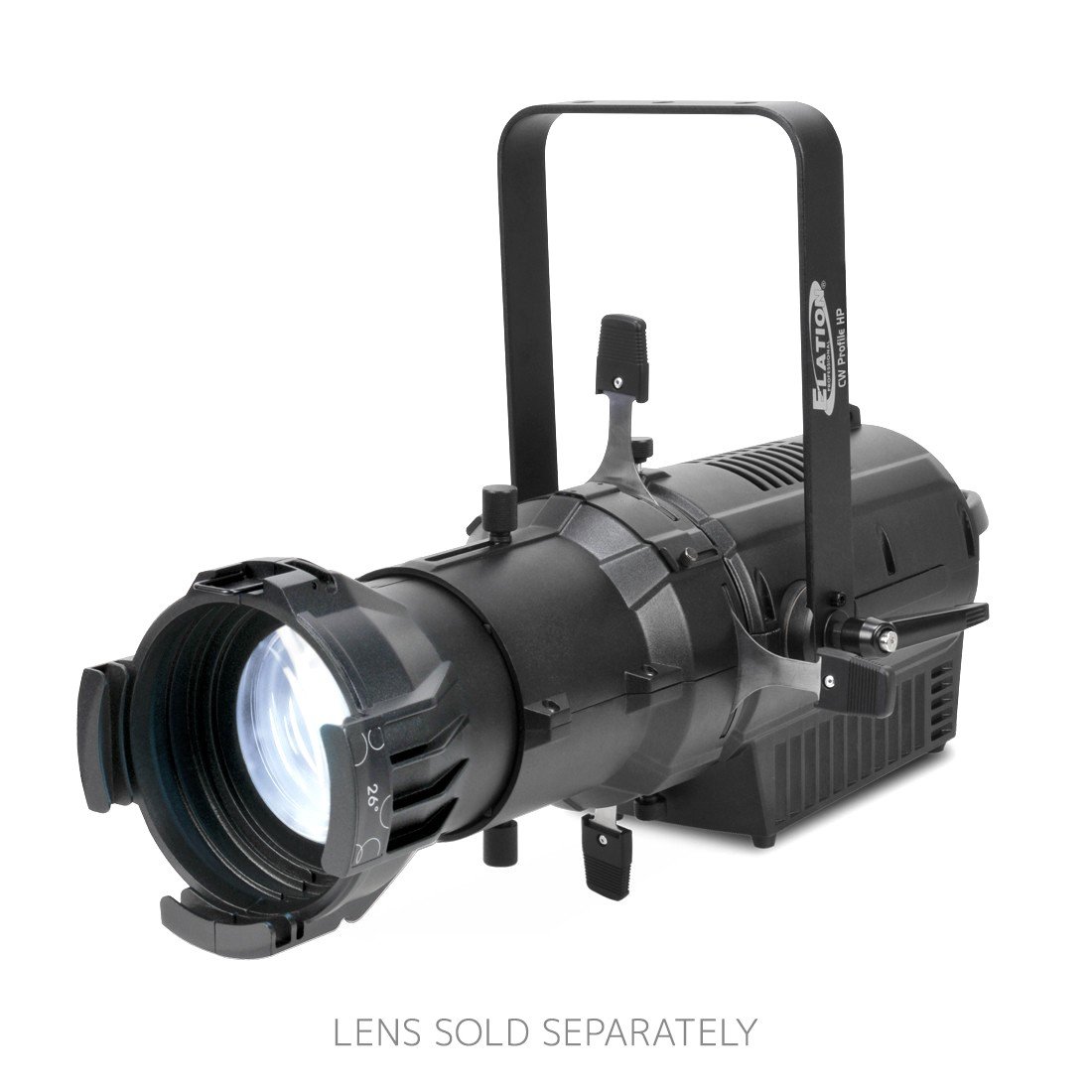

Elation CW Profile HP - No Lens
|
|
|
|
The CW Profile HP™ ellipsoidal features a High Powered 130W Cool White >90CRI 5,600K LED engine producing 11,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and FILM, 3/5pin DMX and powerCON TRUE1 in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).
Features
- High Power 130W Cool White 5,600K LED Engine
- >90CRI | 11,000+ Total Lumens
- Interchangeable Lens Options (19°, 26°, 36°, 50°) (not included)
- (4) Blade Manual Framing Shutters
- Supports B Size Metal or HT Transparency Gobos (not included)
- DMX Controlled Electronic Strobe and 16bit Dimming
- Selectable Dimming Curve Modes
- Flicker Free Operation for TV and FILM
- Adjustable LED Refresh Rate and Gamma Brightness
- Quiet Fan Cooling
Specifications
- High Power 130W Cool White 5,600K LED Engine
- 50,000 Hour Average LED Life*
- *May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data
- >90CRI | 11,000+ Total Lumens
Effects
- Electronic Strobe
- Variable Dimming Curve Modes
Gobos
- Supports "B" Size Metal, HT Transparency Gobos**
- **Gobo Holder Not Included
Control/Connections
- 2 DMX Channel Modes (4 total channels)
- 4 Button Control Panel
- LED Menu Display
- 3/5pin DMX In/Out
- powerCON TRUE 1 In/Out
- With Wired Digital Communication Network
Size/Weight
- Length: 24.3" (618mm)
- Width 12.2" (310mm)
- Vertical Height: 15.7" (398mm)
- Weight: 21.0 lbs. (9.5kg)
Electrical/Thermal
- Quiet Fan Cooling
- AC 100-240V - 50-60Hz
- 160W Max Power Consumption
- 14°F to 113°F (-10°C to 45°C)
Approvals/Ratings
- CE | cETLus | IP20
Firmware Updates
- Current Version: V1.1.6
- Click HERE for firmware updates
