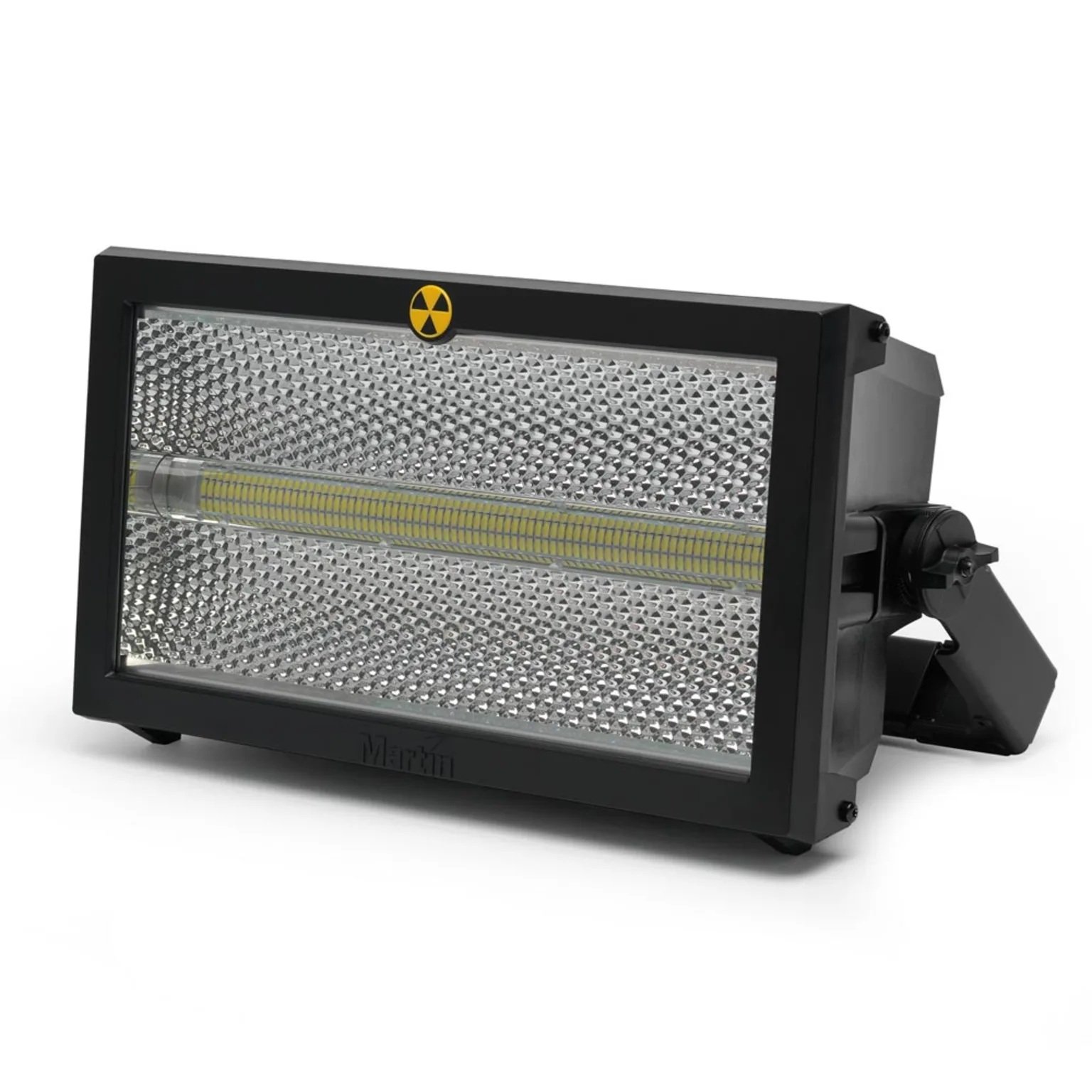

The Atomic™ 3000 LED is the perfect blend of a traditional strobe and cutting-edge LED technology. Capitalizing on the original Atomic™ 3000 DMX’s 15 years of success, this new version features identical functionality and behaviour – with the added benefits of LED technology. It offers the same extreme brightness as its iconic predecessor, but with substantially lower peak power consumption.
The Atomic 3000 LED is not only a strobe, but also a creative tool that incorporates backlight illumination with RGB-controlled LEDs pointing into the reflector. It delivers stunning eye candy looks similar to the MAC Aura™ and the MAC Quantum™ Wash.
Internal FX macros and simplified re-use of the original Atomic Colors scroller complete the full-feature package and empower the Atomic 3000 LED to become the ultimate creative lighting tool.
- Brightest LED-based strobe on the market
- Unique RGB-controlled Aura backlight for stunning eye candy looks
- Same look and feel as the original Atomic 3000 DMX
Features
- Classic reflector look
- Iconic letterbox shape and industrial design
- Aura backlight (RGB) into reflector
- Dimmable house-light function at reduced brightness and power consumption
- LED and Xenon mode available via menu and DMX control channel
- Use of original Atomic color scroller made easy via internal power and data supply
- 4 button menu and LCD display for quick and easy setting adjustment
- Clever rigging and bracket solution
- 4 Channel DMX mode as Atomic 3000 (easy replacement)
- 14 Channel Extended DMX mode incl. Aura control and internal FX macros
- RDM compatible, USB port for software updates
Specifications
Physical
Length: 245 mm (9.7 in.)
Width: 425 mm (16.8 in.)
Height: 240 mm (9.5 in.)
Weight: 7.8 kg (17.2 lbs.)
All data including mounting bracket
Dynamic Effects
Strobe: 0.289 - 16.667 Hz, variable flash rate, intensity and duration
Special effects: Blinder, ramp up/down, random flash, lightning. spikes, pre-programmed FX
Aura (secondary LED array illumination) color mixing: RGB
Control and Programming
Control systems: DMX, RDM
Setting and addressing: Control panel with backlit monochrome graphic display
DMX channels: 3/4/14
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Transceiver: RS-485
Firmware update: via USB type A memory device or via DMX using Martin Companion
Optics and Photometric Data
Max. total output: 180,000 lumens*
Beam (strobe) array: Light source: 228 x Cree XLamp XP-L, 10 W white LEDs (color temperature 5,700 K)
Resolution: 8-bit
Dimming, above 16.7% output intensity: Current-controlled, flicker-free
Dimming, below 16.7% output intensity: PWM (refresh rate 6,000 Hz)
Binning: Tight color and flux binning
Minimum LED lifetime: 50,000 hours**
Aura (backlight) array:
Light source: 64 x Osram RGB LEDs
Resolution: 8 bits per color plus 8-bit dimming
Dimming: PWM (refresh rate 1,001 Hz)
Binning: Tight color and flux binning
Minimum LED lifetime: 50,000 hours**
*For full photometric data, click on Photometrics in menu bar
**To >70% output, figure obtained under manufacturer’s test conditions
Construction
Housing: Steel. high-impact thermoplastic, flame-retardant to UL 94 5VA
Color: Black
Protection rating: IP 20
Housing: Steel. high-impact thermoplastic, flame-retardant to UL 94 5VA
Color: Black
Protection rating: IP 20
Installation
Mounting points: Two pairs of quarter-turn fastener points, M12 holes in adjustable bracket
Location: Indoor use only, must be fastened to structure or surface Orientation: Any
Minimum distance to combustible materials: 200 mm (8 in.) from fixture
Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixture
Mounting points: Two pairs of quarter-turn fastener points, M12 holes in adjustable bracket
Location: Indoor use only, must be fastened to structure or surface Orientation: Any
Minimum distance to combustible materials: 200 mm (8 in.) from fixture
Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixture
Connections
AC Power: Neutrik PowerCON TRUE1 TOP male socket
DMX data in/out: 5-pin locking XLR
Atomic Colors color gel scroller: 4-pin locking XLR
Software upload: USB 2.0
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.7 A
Typical earth-leakage current: 0.18 mA
Power Factor: 0.98 @ 100 V , 0.96 @ 120 V , 0.89 @ 208 V , 0.88 @ 230 V , 0.87 @ 240 V
Max current draw: 8.4 A @ 100 V / 120 V , 3.9 A @ 208 V / 230 V / 240 V
Typical current draw: 6.8 A @ 100 V , 5.7 A @ 120 V , 3.5 A @ 208 V , 3.2 A @ 230 V , 3.1 A @ 240 V *
Power Consumption
Maximum: 740 W
Typical: 663 W *
Idle: 25 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Allow for peak currents that exceed these figures when using the blinder effect.
Typical: full output white, regulated fan speed.
Idle: no output, regulated fan speed.
AC Power: Neutrik PowerCON TRUE1 TOP male socket
DMX data in/out: 5-pin locking XLR
Atomic Colors color gel scroller: 4-pin locking XLR
Software upload: USB 2.0
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.7 A
Typical earth-leakage current: 0.18 mA
Power Factor: 0.98 @ 100 V , 0.96 @ 120 V , 0.89 @ 208 V , 0.88 @ 230 V , 0.87 @ 240 V
Max current draw: 8.4 A @ 100 V / 120 V , 3.9 A @ 208 V / 230 V / 240 V
Typical current draw: 6.8 A @ 100 V , 5.7 A @ 120 V , 3.5 A @ 208 V , 3.2 A @ 230 V , 3.1 A @ 240 V *
Power Consumption
Maximum: 740 W
Typical: 663 W *
Idle: 25 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Allow for peak currents that exceed these figures when using the blinder effect.
Typical: full output white, regulated fan speed.
Idle: no output, regulated fan speed.
Thermal
Cooling: Forced air (temperature-regulated, low noise, user-definable fan settings)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Typical heat dissipation (calculated, +/- 10%): 2270 BTU/hr.
Cooling: Forced air (temperature-regulated, low noise, user-definable fan settings)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Typical heat dissipation (calculated, +/- 10%): 2270 BTU/hr.
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 271.5 lm/W
LWR*: 23,077 lm/kg (10,465 lm/lb)
LWR = Lumen-to-Weight Ratio
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 271.5 lm/W
LWR*: 23,077 lm/kg (10,465 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015 Class B, EN 61547, EN 55032, EN 55035, EN 61000-3-2 Class A, EN 61000-3-3
US safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian safety: CSA E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
United Kingdom: UKCA
India: TIS
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015 Class B, EN 61547, EN 55032, EN 55035, EN 61000-3-2 Class A, EN 61000-3-3
US safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian safety: CSA E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: RCM
United Kingdom: UKCA
India: TIS
Related Items
Martin Companion Cable: P/N 91616091
Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
Martin Companion Cable: P/N 91616091
Martin Companion Software Suite (including firmware uploader): Free download from www.martin.com
Accessories
Power connectors:
Cable Connector, Neutrik PowerCON TRUE1 NAC3FX-W (female): P/N 91611789
Power cables:
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174
Installation hardware:
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging installation only): P/N 91602003
Quick trigger clamp (vertical hanging installation only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Atomic Colors gel scroller: P/N 91611086
Ordering Information
Atomic 3000 LED™ in cardboard box: P/N 90425000
