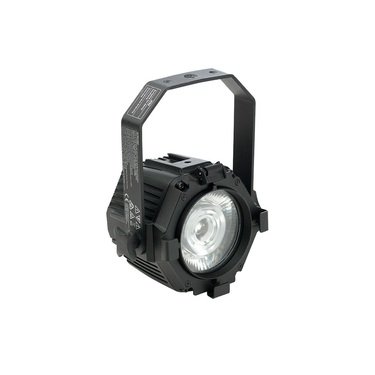

- Cold white (5700K) beam/strobe/blind/eye-candy fixture
- 3350 lumen boost/strobe
- 1600 lumen continuous
- Beam angle of 11 degrees
- Field angle of 22 degrees
- Pixel-controllable RGB Aura backlight
- Compact form-factor
- Built-in power supply (100-240V)
- Power and Data IN & THRU via hybrid cable (PDE System)
- P3, DMX, Art-Net & sACN compatible
- Built-in pixel-FX on backlight and beam
- Front-accessory holder for barndoors and/or diffuser/lens
- Detachable yoke-assembly
- VDO Grid Mount System to build battens, arrays and creative shapes
- Compatible with Martin VDO Atomic Bold and MAC One interlocking mechanics for mixed arrays
- Passive cooling
- IP65 rated
Specifications
Physical
Width excluding hanging bracket: 130 mm (5.1 in.)
Width including hanging bracket: 175 mm (6.9 in.)
Height excluding hanging bracket: 134 mm (5.3 in.)
Height including hanging bracket: 242 mm (9.5 in.)
Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Depth: 146 mm (5.7 in.)
Weight including hanging bracket: 2.2 kg (4.85 lbs.)
Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)
Width excluding hanging bracket: 130 mm (5.1 in.)
Width including hanging bracket: 175 mm (6.9 in.)
Height excluding hanging bracket: 134 mm (5.3 in.)
Height including hanging bracket: 242 mm (9.5 in.)
Horizontal fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Vertical fixture spacing: 150 mm (5.9 in.) (center-to-center using interlock couplers)
Depth: 146 mm (5.7 in.)
Weight including hanging bracket: 2.2 kg (4.85 lbs.)
Weight excluding hanging bracket: 2.0 kg (4.41 lbs.)
Dynamic Effects
Beam Dimmer/Shutter: 0 – 100% continuous dimming, variable flash rate and duration, and atomic effects
Beam Dimming options: Choice of four dimming curves
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects
Aura Dimming options: Choice of four dimming curves
Aura Color mixing: RGB, independently variable 0 - 100%
Aura Color temperature control: Variable 2000 - 11,000 K
Aura Virtual Color wheel: 36 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each Aura pixel
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Built-in FX: Various pre-programmed FX on Beam, Aura and combination of both
Control and Programming
Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection: Automatic
Setting and addressing: RDM, RDM over Art-Net or P3
DMX Modes: 1-channel, 3-channel, 4-channel, Basic, Extended
DMX channels: 1, 3, 4, 19, 64
Fixture Identification: User-settable ID number
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: RS-485
Ethernet Transceiver: 10/100Mbit
Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
P3 Video Processing
Color Resolution: 16 bit per color (48 bit per pixel) (Aura)
Color Temperature Control: 2000-11,000 K (Aura)
Synchronization: System-wide
Frame Rate: Up to 75 frames/sec
Brightness Control: 0-100% (maintaining full color depth)
Color Gamut Control: full spectrum control (Aura)
Gamma Correction and Control: fully controllable (Aura)
Control/User Interface
Device status: Multi-color status LED
Device test and reset: Pushbutton to call up local test patterns and reset device
Optics and Photometric Data
Lens Diameter: 95 mm
Front Accessory Holder: PAR30 size
Beam/Strobe LED
LED Type: Cold White
Max. total lumen output: 3350 lumens (boost/strobe mode)
Max. total lumen output: 1600 lumens (continuous mode)
Beam Angle: 11 Degrees (half peak)
Field Angle: 22 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Color Temperature: 5700 K
CRI (Color Rendering Index): ≥ 80
Resolution: 16-bit
Minimum LED lifetime: 50,000 hours (to >70% luminous output)
Aura Backlight LEDs
LED Type: RGB
LED Quantity: 16
Binning: Tight color and flux binning
Color Temperature: Variable (2000-11,000 K)
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Lens Diameter: 95 mm
Front Accessory Holder: PAR30 size
Beam/Strobe LED
LED Type: Cold White
Max. total lumen output: 3350 lumens (boost/strobe mode)
Max. total lumen output: 1600 lumens (continuous mode)
Beam Angle: 11 Degrees (half peak)
Field Angle: 22 Degrees (one-tenth peak)
Binning: Tight color and flux binning
Color Temperature: 5700 K
CRI (Color Rendering Index): ≥ 80
Resolution: 16-bit
Minimum LED lifetime: 50,000 hours (to >70% luminous output)
Aura Backlight LEDs
LED Type: RGB
LED Quantity: 16
Binning: Tight color and flux binning
Color Temperature: Variable (2000-11,000 K)
Resolution: 16-bit per color per pixel
Minimum LED lifetime: 50,000 hours (to >70% luminous output)
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing: Aluminum
Color: Black
Protection rating: IP65
Housing: Aluminum
Color: Black
Protection rating: IP65
Installation
Mounting options: hanging from bracket, hanging from clamp attached directly to fixture or hanging from other fixture using interlock mechanism
Location: indoor or temporary outdoor use
Clamp attachment to hanging bracket: M12
Clamp attachment directly to fixture: M8
Maximum vertical column height: 16 fixtures
Orientation: Any
Minimum distance to combustible materials: 0.1 m
Minimum distance to illuminated surfaces: 0.2 m
Connections
AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible
AC Power, DMX and Network input: cable tail with PDE hybrid connector (IP65)
AC Power, DMX and Network thru: chassis-mount PDE hybrid connector (IP65)
All connections hot plugging compatible
Electrical
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.1 A
Typical earth-leakage current: 0.25 mA
Power Factor: 0.99 @ 100 V , 0.98 @ 120 V , 0.95 @ 208 V , 0.96 @ 230 V , 0.94 @ 240 V
Max current draw: 0.6 A @ 100 V / 120 V , 0.3 A @ 208 V / 230 V / 240 V
Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.2 A @ 208 V , 0.2 A @ 230 V , 0.2 A @ 240 V *
Power Consumption
Maximum: 55 W
Typical: 50 W *
Idle: 4 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white.
Idle: no output.
AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.1 A
Typical earth-leakage current: 0.25 mA
Power Factor: 0.99 @ 100 V , 0.98 @ 120 V , 0.95 @ 208 V , 0.96 @ 230 V , 0.94 @ 240 V
Max current draw: 0.6 A @ 100 V / 120 V , 0.3 A @ 208 V / 230 V / 240 V
Typical current draw: 0.5 A @ 100 V , 0.4 A @ 120 V , 0.2 A @ 208 V , 0.2 A @ 230 V , 0.2 A @ 240 V *
Power Consumption
Maximum: 55 W
Typical: 50 W *
Idle: 4 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white.
Idle: no output.
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr
Cooling: Convection
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 0° C
Typical heat dissipation (calculated, +/- 10%): 171 BTU/hr
Environmental
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 74.4 lm/W
LWR*: 1,523 lm/kg (691 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: 47 CRF Chapter 15 Class B
Canadian safety: CSA 22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA
Related Items
VDO Atomic Dot WRM in cardboard: P/N 90357702
Martin P3-050™ System Controller: P/N 90721090
Martin P3-150™ System Controller: P/N 90721015
Martin P3-300™ System Controller: P/N 90721060
Martin P3-PC™ System Controller: Free download from martin.com
Martin Companion Cable (for firmware update over DMX): P/N 91616091
Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
Accessories
Junction Boxes
Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002
Adapters Cables
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003
Optical Accessories
VDO Atomic Dot Diffuser 60 Degrees: P/N 91610002
VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005
Mechanical Accessories
Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
G-clamp (vertical hanging installation only): P/N 91602003
Half-coupler clamp: P/N 91602005
Quick trigger clamp (vertical hanging installation only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Set of 10 VDO Couplers: P/N MAR-91616129HU
VDO Atomic Half Coupler: P/N 91610004
VDO Atomic Interlock Adapter: P/N 91610006
VDO Atomic Pivot Coupler: P/N 91610007
VDO Atomic Dot Double Width Bracket: P/N 91616117
VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118
Pre-Assembled Hybrid PDE Cables
Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002
Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
Power+Data Cable Rental PDE-PDE 25m: P/N 91616005
Bulk Hybrid PDE Cable and Connectors
Power+Data Connector PDE Male: P/N 91611701
Power+Data Connector PDE Female: P/N 91611702
Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006
DemoKit
VDO Atomic Dot Demo Kit: P/N 91311001
Flightcase
Flightcase for 15 x VDO Atomic Dot: P/N 91515053
Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054
Junction Boxes
Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002
Adapters Cables
BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
BreakInOut Cable Power-DMX to PDE: P/N MAR-91700003
Optical Accessories
VDO Atomic Dot Diffuser 60 Degrees: P/N 91610002
VDO Atomic Dot Diffuser 30 Degrees: P/N 91610005
Mechanical Accessories
Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
G-clamp (vertical hanging installation only): P/N 91602003
Half-coupler clamp: P/N 91602005
Quick trigger clamp (vertical hanging installation only): P/N 91602007
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Set of 10 VDO Couplers: P/N MAR-91616129HU
VDO Atomic Half Coupler: P/N 91610004
VDO Atomic Interlock Adapter: P/N 91610006
VDO Atomic Pivot Coupler: P/N 91610007
VDO Atomic Dot Double Width Bracket: P/N 91616117
VDO Atomic Spigot Adapter 28mm: P/N MAR-91616118
Pre-Assembled Hybrid PDE Cables
Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
Power+Data Cable Rental PDE-PDE 2,5m: P/N 91616002
Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
Power+Data Cable Rental PDE-PDE 25m: P/N 91616005
Bulk Hybrid PDE Cable and Connectors
Power+Data Connector PDE Male: P/N 91611701
Power+Data Connector PDE Female: P/N 91611702
Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006
DemoKit
VDO Atomic Dot Demo Kit: P/N 91311001
Flightcase
Flightcase for 15 x VDO Atomic Dot: P/N 91515053
Flightcase Extender for 15 x VDO Atomic Dot: P/N 91515054
Ordering Information
VDO Atomic Dot CLD in cardboard : P/N 9035770
