ADJ Saber Spot WW

Details

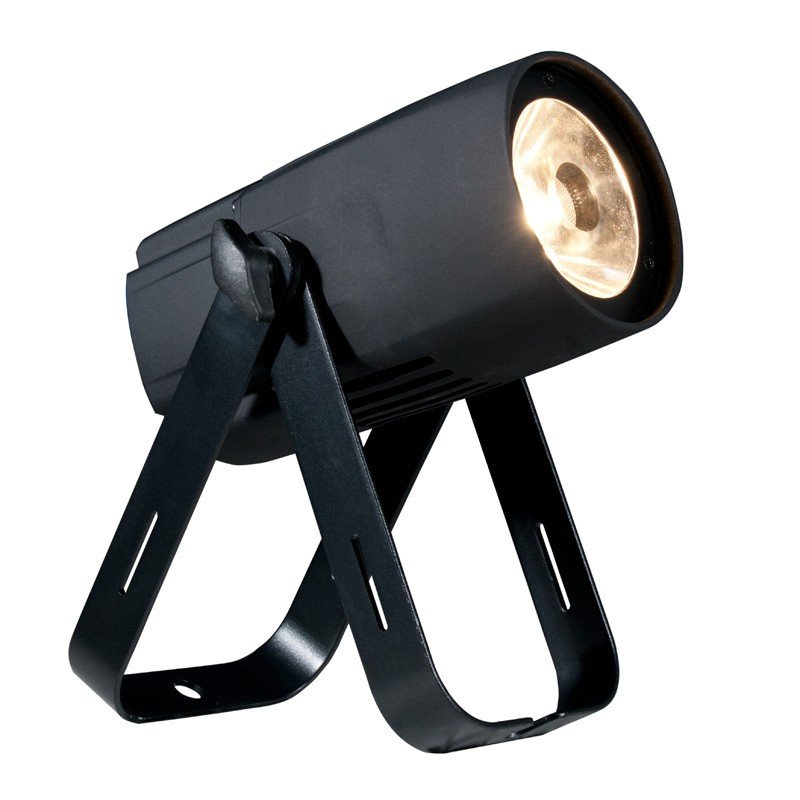

The Saber Spot WW is a compact Pinspot with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor sharp 4-degree beam angle.

The Saber Spot WW has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.

Specifications

Optical
  • Light Source: 15-Watt Warm White LED
  • LED Life Expectancy: 10,000 Hrs
  • Beam Angle: 4-degrees
  • Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
  • Refresh Rate: 3.6KHz



Technical Features
  • 4-button Digital Display for easy navigation
  • Electronic Dimming 0 – 100%
  • Flicker Free
  • Includes a scissor yoke to be hung or set on the ground



Connections
  • Power Input: powerCON
  • Power Pass through: powerCON
  • Control: 3 Pin DMX In/Out pigtails
  • With Wired Digital Communication Network



Control
  • 2 DMX Channel Modes: 1 or 2



Electrical
  • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  • Power draw 120V 60Hz: 15W, 0.13 Amps
  • Power draw 220V 50Hz: 15W, 0.07 Amps



Physical
  • Dimensions (LxWxH): 3.5” x 6.75” x 3.5” / 88 x 170 x 87mm
  • Weight: 2.6 lbs / 1.2 kg.
  • Metal Black Housing



Certifications
  • ETL Approved, UL, CE
  • IP 20: Dry area, No liquids



What’s Included
  • Manual
  • powerCON power cord
  • 2 frost filter lens (10-degree & 45-degree)
  • O-ring for frost filter lens

Optional Accessories
  • PLC 3,PLC 6, PLC 10 (powerCON passthrough cables)
