Eliminator Lighting Mega Flat PAK EP

Eliminator Lighting Mega Flat PAK EP

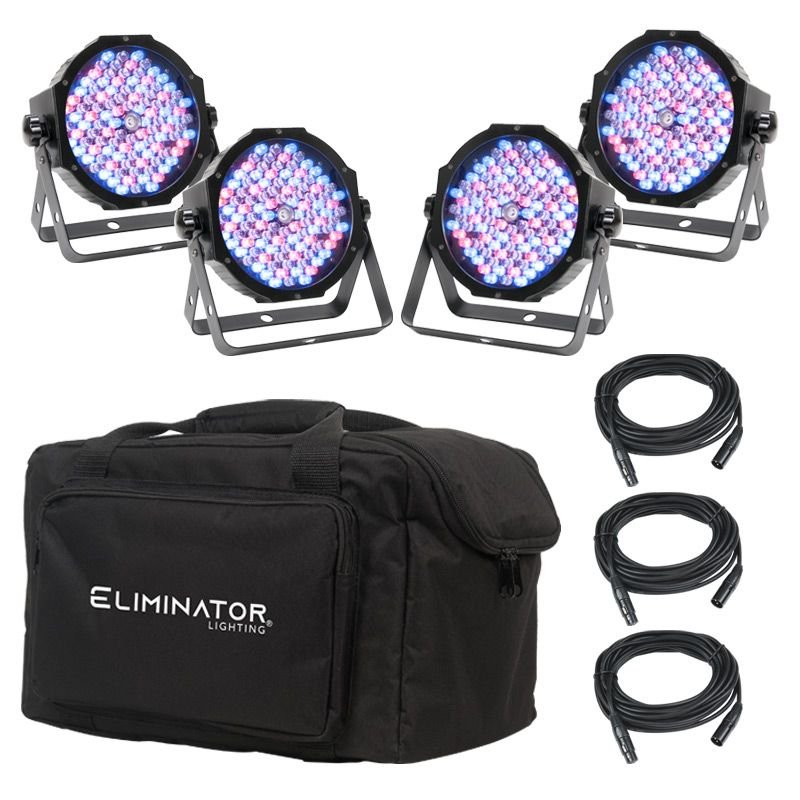

The Eliminator Lighting Mega Flat Pak EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage at any event. This lighting system includes: 4x Eliminator Lighting Mega Par Profile EP Pars, 4x (1M/3ft.) IEC to Edison power cables, 3x (6ft/2M) DMX Cables and a soft transport bag.

The Eliminator Lighting Mega Flat Pak EP is a convenient solution for the mobile entertainer to provide uplighting or mobile stage at any event It includes four (4) of the popular Eliminator Lighting Mega Par Profile EP LED Wash Fixtures, (4) IEC to Edison power cables, three (3) DMX connector cables, and a soft carrying case to protect your Mega Par Profile EP’s during transport and dust-free while storing.

The Mega Flat Pak EP slim design and vibrant RGB + UV output is perfect for Uplighting, stage washing and wall washing. The carrying case easily fits four Mega Par Profile Plus’s and the DMX cables, plus a space for a small LED Controller (controller sold separately).
System Incudes:

• 4x Eliminator Lighting Mega Par Profile EP
• 4x (1M/3ft.) IEC to Edison power cables,
• 3x (2m/6 ft) DMX Cables
• 1x Eliminator Lighting F4 Par Bag EP
IEC power link cables sold separately and available in 3, 6, 10 & 15 foot lengths. (Items: ECCOM-3, ECCOM-6, ECCOM-10 & ECCOM-15)


Features:
• Smooth RGB+UV Color Mixing (fast or slow color change operation)
• Power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• Display Inversion Mode
• Color strobe effect
• Compatible with ADJ LED RC2 wireless infrared remote control up to 30 ft./ 10M (sold separately)

Specifications:

Source:
• 107x 10mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED)
• Light output: 345 LUX @ 2M; 92 LUX @ 4M (30-degree beam)
• Beam Angle: 30 degrees
• Long Life LEDs (50,000 hrs.)
Control:
• 5 DMX Channel modes: 4/5/6/9/10 channels
• 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled
• 16 Sound Active shows
• 32 Built-in shows (16 Color Changing Shows & 16 Color Fading Shows)
• 64 built-in Color Macros
• Stand Alone or Primary/Secondary Configuration
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• With Wired Digital Communication Network
• Electronic Dimming: 0-100%
• 4-button function display
Connections:
• 3-pin DMX In/Out
• IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V)
Electrical:
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Power Draw: 16W Max
Dimensions & Weight:
• Dimensions (LxWxH): 9”x 8.75”x 3.5”/ 225x220x85mm
• Weight: 3 lbs./ 1.1 kg.
What’s Included:
• Includes scissor yoke to hang on truss, mount on a wall or set on the ground
• Power cable length: 1.8 meter (IEC)

WARNING:This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
