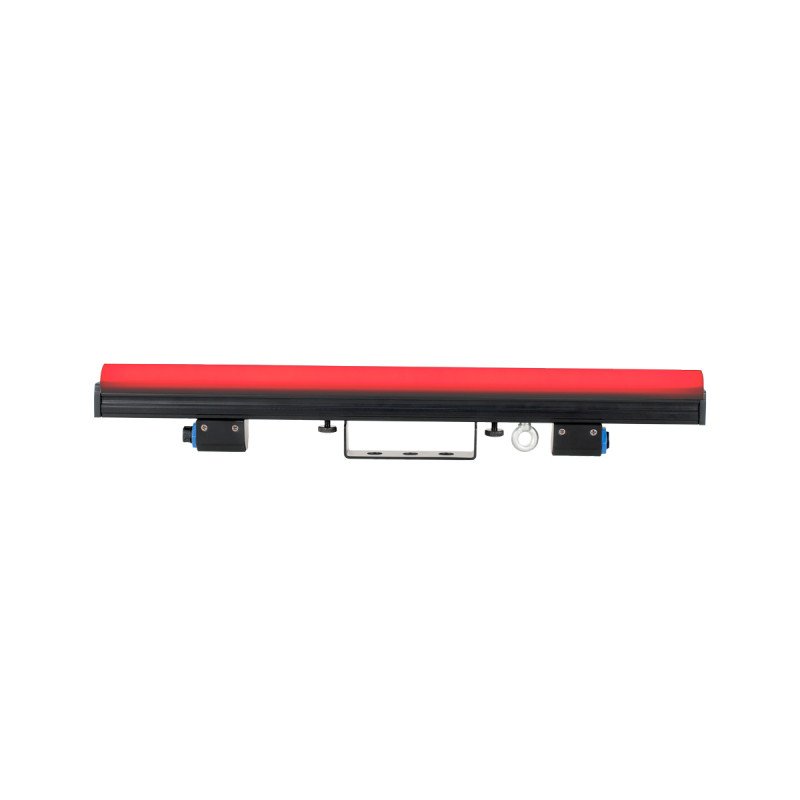

ADJ Pixie Strip 30

The PIXEL STRIP 30™ is a 0.5 meter, indoor LED pixel strip featuring (30) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (1.64 feet) in length. Each pixel strip is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Specifications

Source
  • SMD RGB 3-in-1 LED's
  • Color Resolution: 8 bits per color (24 bit per pixel)
  • Viewing Angle: 120 x 120 degrees
  • Pixels Per Meter: 60 pixels
  • Pixel Pitch (pixel center-to-center) 16.5mm
  • PWM (Pulse Width Modulation): 44,000Hz
Connections
  • 4pin Power/Data In/Out
Size/Weight
  • Length: 19.7” (500mm)
  • Width: 1.26” (32mm)
  • Height: 2.64” (67mm)
  • Weight: 1.54 lbs. (0.7kg)
Electrical
  • Max Power Consumption: 6W
Approvals
  • CE | cETLus

WARNING:This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
