Allen & Heath AH-M-DL-DXLink-A dLive DX Expander
Allen & Heath AH-M-DXLink-A

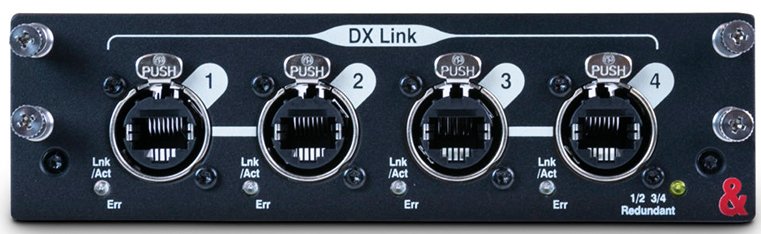

The DX Link audio networking card (M-DL-DXLINK) provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units in either Parallel or Redundant mode.
Easy I/O Expansion
Add up to 128 remote inputs and 64 remote outputs per DX Link module.
Plug-and-Play Operation
No configuration required, just install the card, connect your choice of DX Expander(s) and patch your audio.
Parallel Mode
In Parallel mode, 1 DX32 or up to 2 DX168/DX012/DX164-W expanders can be connected to each DX Link port.
Redundant Mode
In Redundant mode, 1 DX expander of any kind can be connected to each pair of DX Link ports using 2 cables for redundant connection.
Add The I/O You Need
Multiple DX Link cards can be fitted to an Avantis or dLive system to scale up system I/O to meet your requirements. The card provides 4 DX Link ports, each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units in either Parallel or Redundant mode.
Compatible with DX32, DX168, DX012 and DX164-W audio expanders
4 DX Link ports
Locking etherCON connectors
Add up to 128 inputs and 64 outputs to a dLive system per DX Link module
Redundant or Parallel connection modes
96kHz sample rate
