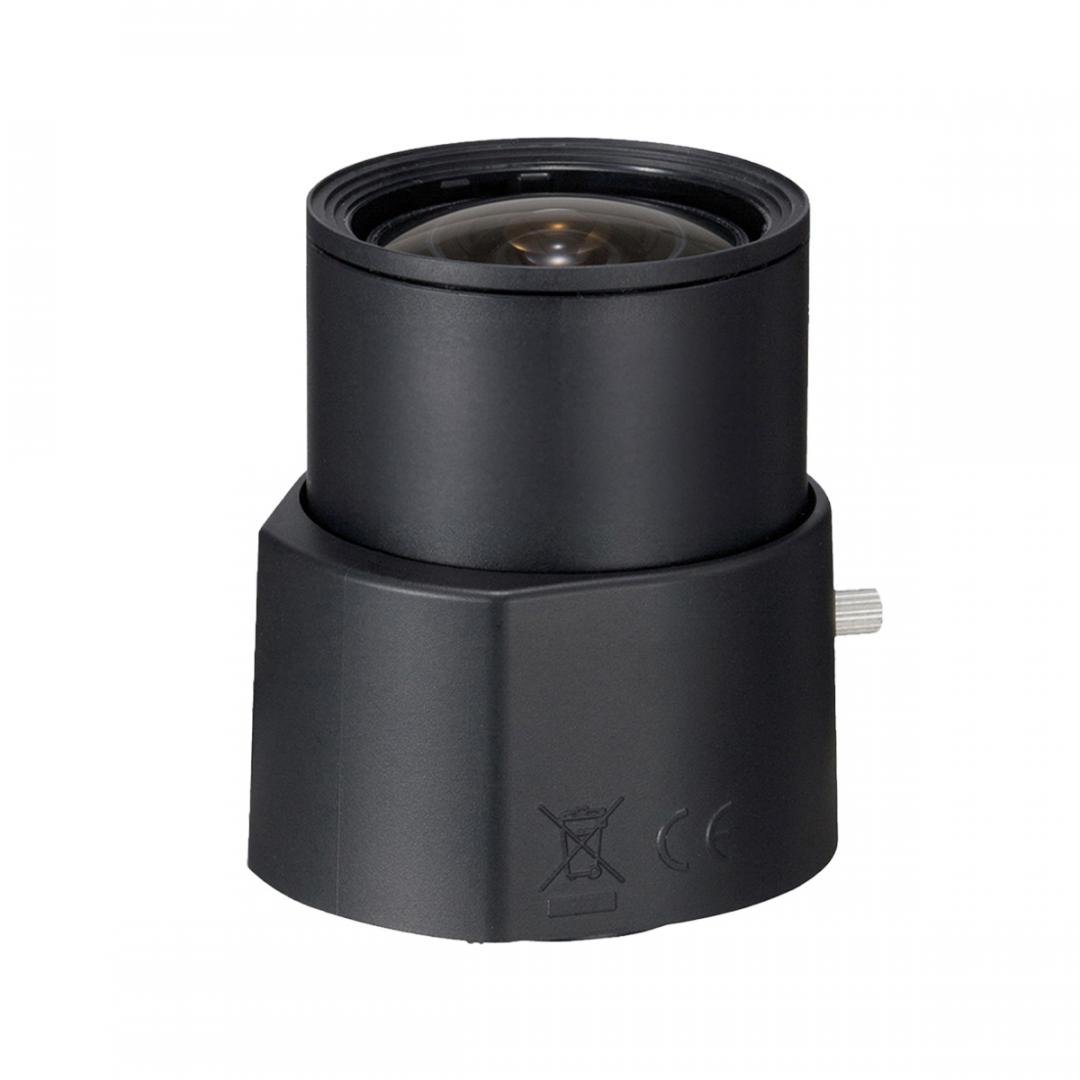

DataVideo CSM-15 - 1/1.8" 4K Sensor Mount Lens for BC-15CN

CSM-15 - 1/1.8" 4K Sensor Mount Lens for BC-15CN

Enhance your surveillance system with this premium 4K varifocal lens. Its 3.9–10mm focal length offers flexibility, while the DC auto iris ensures optimal brightness in varying lighting conditions. With IR-corrected optics and corner brightness compensation, it delivers clear, uniform images day and night.


Features

  • 4K Ultra HD Resolution: Delivers crisp, detailed images, ensuring high-quality video capture
  • 3.9–10mm Focal Length: Provides a versatile field of view, adaptable to various surveillance needs
  • Precise Focus Adjustment: Allows for fine-tuning to achieve sharp, clear images
  • IR-Corrected Optics: Ensures accurate color reproduction and image clarity in both day and night conditions
  • Applications: Ideal for high-resolution surveillance systems, this lens is suitable for a range of environments requiring detailed image capture, such as retail spaces, parking lots, and building perimeters.BC-15CN compatible

Specifications

Focal Length: 3.9mm 10mm
Max. Aperture Ratio: 1:1.5
Max. Image Format: 7.1mm x 5.4mm (φ8.9mm)
Flange Back Length: 12.5mm
Mount: CS-Mount
Dimensions: 40 mm× 49 mm× 59 mm
Weight: 72g
