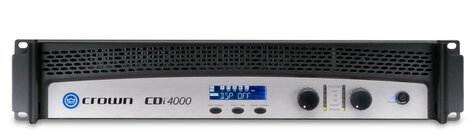

The CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000. All are rugged and lightweight, and offer unmatched value in their class.
Recommended for: Installed Sound.
Downloads
| |
Version |
Language |
Size |
Uploaded |
| CDi 4000 Cut Sheet |
|
|
555 KB |
Sep 16, 2015 |
| CDi 4000 Owner's Manual |
|
|
2.11 MB |
Aug 04, 2014 |
| CDi 4000 Owner's Manual-Chinese |
|
 |
2.86 MB |
Aug 06, 2014 |
Software
|
 HiQnet Audio Architect™ |
|
|
|
Aug 23, 2016 |
Declaration Of Conformities
|
 CDi Declaration of Conformity |
|
|
89.8 KB |
Aug 27, 2015 |
System Technology Bulletins
|
| STB XTi-CDi-DSi Restoring Default #0003 |
|
|
695 KB |
Aug 27, 2015 |
| STB XTi-CDi-DSi Common term definitions #0005 |
|
|
488 KB |
Aug 27, 2015 |
| STB XTi-CDi-DSi Fan Config #0001 |
|
|
437 KB |
Aug 27, 2015 |
| STB XTi-CDi-DSi Front Panel Lockout #0004 |
|
|
673 KB |
Aug 27, 2015 |
| STB XTi-CDi-DSi USB Communication #0002 |
|
|
572 KB |
Aug 27, 2015 |
Power Draw & Thermal Dissipation Specs
|
| CDi Power Draw & Thermal |
|
|
21 KB |
Aug 27, 2015 |
Comparison Charts
|
| CDi DriveCore product comparison chart |
|
|
229 KB |
May 28, 2019 |
Specifications
- Channels: 2
- Sensitivity (for full rated power at 8 ohms): 1.4V
- Rated Power Output (per channel @ 4 ohms): 1200W Stereo
- Signal to Noise Ratio (below rated 1 kHz power at 8 ohms): 100 dB (A-weighted)
- THD: < 0.5%
- Damping Factor (20 Hz to 400 Hz): > 500
- Frequency Response (at 1W, 20 Hz - 20 kHz): + 0 dB, -1 dB
- Crosstalk (below rated power) 20 Hz to 1 kHz: >70 dB
- Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced
- Dimensions: 3.5" x 19" x 12.25"
- Weight: 22.0 lbs
- IEC Power Connector: 15A
