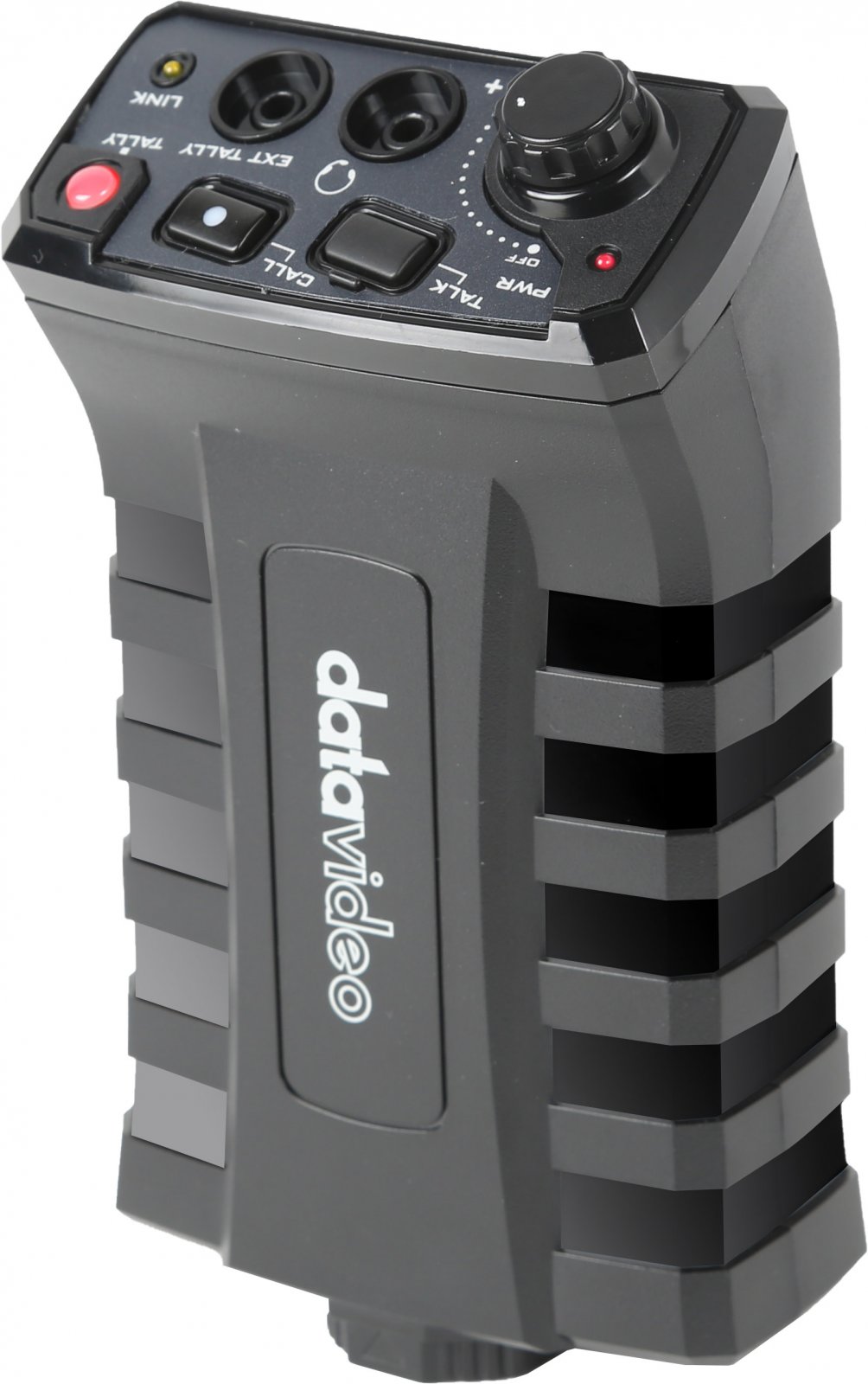

DataVideo ITC-300SL Additional Beltpack for ITC-300
|
|
|
Digital Intercom Belt Pack for ITC-300
Perfect match for your ITC-300
Special design for your RJ-45 connector
The ITC-300SL has a special CAT-6 connector shield to prevent the cable lost when used.
ITC-300SL Belt Packs included
TD-3 - Camera Tally Light
MC-1 - Headset / Microphone
1 x GPI Cable
1 x Ethernet Cable
1 x Earphone Cable
1 x Black Velcro
1 x Velcro
4 x Ethernet Cable Connector Set
Specifications
| ITC-300SL Digital Intercom Belt Pack | |
|---|---|
| Communication |
Call Button x 1 |
| MIC / Headset |
3.5mm Stereo Jack Socket x 1 |
| Tally Out Socket |
3.5mm Jack Socket to connect to TD-3 Tally Indicator |
| Volume Control |
VR with Multifunction Switch (Adjusts the volume of the headphones) |
| Tally LED |
Bi-Color LED – RED indicates LIVE/GREEN Indicates CUED |
| Power LED |
Red light |
| Link LED |
Yellow light |
| Call LED |
Green light – Outgoing call |
| Power |
Ethernet RJ45 x 1 (11V~36V) |
| Frequency Response |
300 Hz~7 KHz, < +/-3dB |
| THD |
< 0.1% @1KHz |
| S/N |
>70dB |
| Operating Range |
Up to 100m between Base Station and Slave |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
| Humidity |
10% to 80% (non-condensing) |
| Dimension |
81.2 x 142.6 x 49.6 mm |
| Weight |
230 g |
| What's in the Box |
1 x ITC-300SL Belt Pack |
