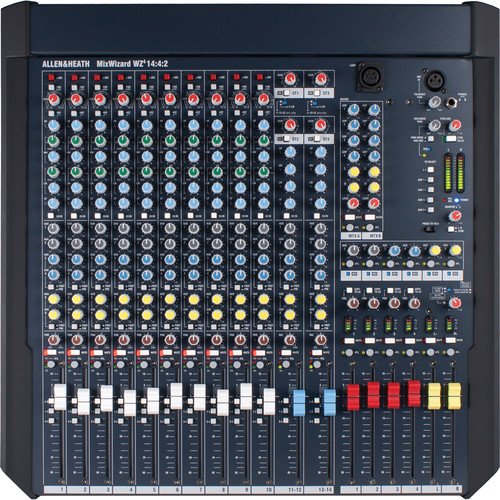

Allen & Heath AH-WZ4 14:4:2 MixWizard4 14:4:2 Mixer

Allen & Heath AH-WZ414:4:2

The MixWizard WZ4 14:4:2 from Allen & Heath is a desk/rack mountable professional-grade live sound mixer with ten mic/line inputs, 48V phantom power, and balanced XLR/TRS jacks. It can be used in scenarios where you don't need a lot of channels for applications such as microphones, keyboards, and equally at home for sound re-enforcement, on monitors, music playback systems, and more.

The WZ4 14:4:2 is built with two dual-stereo channels, a 4-band EQ with 2 sweepable mids, and 100mm faders. Furthermore, it has 12-segment bargraph metering, six aux sends, and a QCC connector system for easy desktop, rack, or flightcase mounting.

This fourth generation MixWizard console includes the option to fit a multichannel USB interface with a 16-channel soundcard for easy multitrack recording and 2-track playback.

Three Modes of Operation

The WZ4 14:2 can be easily configured to run as a FOH or monitor desk, or even a combination for those times when you need to mix monitors and FOH from the same desk.

1.  FOH

In FoH Mode, the 4 groups with inserts, 100mm faders and XLR outputs can be routed and panned to the LR mix for flexible sub-mixing. The main LR mix has inserts, separate left and right faders, and XLR outputs to feed the main speaker system. EQ and signal processing can easily be inserted on group and main outputs.

2.  Monitor

In Monitor Mode, the aux mixes are routed to the group and LR faders, inserts and XLR outputs. The AFL and PFL system is switched to the Mono output to provide an engineer’s ‘wedge’ output. In essence, it’s a perfect 6-mix monitor console with additional outputs available from the group busses via the aux master controls.

3.  Dual

In Dual Mode some auxes can be used as monitor mixes and some sub-grouping can be used along with the main LR outputs, allowing the engineer to run FoH sound and some Monitor mixes from the same console.

Clean and Detailed Sound

The MixWizard4 preamp delivers extremely low noise, minimal distortion, wide yet smooth gain law and plenty of headroom. The preamp was developed by leading analogue designer Mike Griffin and is adapted from the design used on our legendary large-format analogue consoles.

Comprehensive Aux System

All MixWizard4 models offer a generous 6 auxes, each with its own master level rotary control and impedance-balanced TRS outputs. A clever monitoring system lets you listen to aux outputs in mono or in stereo pairs. Auxes 1-2 are routed pre-fade for monitors; auxes 3-4 are switchable pre or post-fade for monitors, FX or additional recording or zone feeds; and auxes 5-6 are routed post-fader for FX and aux-fed sub. These pre/post settings can be changed via internal jumpers.



Fits Anywhere

Our unique QCC (Quick Change Connectors) system lets you swiftly change the position of the connector panel to suit desktop, rack or flight case mounting. The hard plastic side trims can also be removed to reveal the integral rack ears.



Flexible Stereo Routing

On WZ4 14:4:2 and WZ4 12:2, two dual stereo channels with TRS connectors and independent gain controls are included for FX returns and stereo line sources. One stereo input can feed straight to LR, so providing extra returns. The stereo channels feature a 4-band EQ and can be routed to all 6 auxiliary sends.



Features:
  • 10 Mic/Line Inputs
  • Balanced XLR/TRS Jacks
  • 100mm Faders
  • Tri-Color, 12-Segment Bargraph Metering
  • Signal and Peak LEDs
  • 4-Band EQ with 2 Swept Mids
  • 48V Phantom Power
  • 6x Aux Sends


Specifications:

Number of Analog Input Channels
14
Number of Mic Preamps
10
Analog Output Channels
1x Stereo Master Output
1x Mono Master Output
1x Stereo Control Room/Monitor Output
2x Mono Matrix Output
4x Mono Bus/Subgroup Output
2x Mono Aux Send Output
1x Stereo Tape/Record Output
10x Mono Direct Output
1x Stereo Headphone Output
Mix Routing
6x Aux Send
Built-In Effects
No
Rack Mountable
No

Mixer:

Number of Analog Input Channels
14
Number of Mic Preamps
10
Analog Output Channels
1x Stereo Master Output
1x Mono Master Output
1x Stereo Control Room/Monitor Output
2x Mono Matrix Output
4x Mono Bus/Subgroup Output
2x Mono Aux Send Output
1x Stereo Tape/Record Output
10x Mono Direct Output
1x Stereo Headphone Output
Mix Routing
6x Aux Send
Meters
Main Meter:
12-Segment LED
Channel Meter:
2-Segment LED
Meter Range
Main Meter:
-30 dB to +16 dB Peak/Clip
Channel Meter:
-12 dB to +16 dB Peak/Clip
Meter Calibration
0 VU on Meter = +4 dBu at Main Output

Signal Processing:

EQ Parameters
Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 500 Hz to 15 kHz, 1.8 Q (Semi-Parametric)
Lo-Mid: ±15 dB at 35 Hz to 1 kHz, 1.8 Q (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 2.5 kHz, 1.8 Q (Notch/Peak)
Lo-Mid: ±15 dB at 250 Hz, 1.8 Q (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Filters
High-Pass: 80 Hz, 12 dB/Octave
Built-In Effects
No

Performance:

Headroom
Channel: +21 dB
Main Mix: +23 dB
Frequency Response
10 Hz to 30 kHz ±0.5 dB
Output Level
XLR Output:
+26 dBu at Max Gain (into 600 Ohms)
1/4" Output:
+21 dBu at Max Gain (into 2 Kilohms)
Crosstalk
Adjacent Channels, Fader Off, Muted:
< 90 dB at 1 kHz
EIN
Mic Input:
-127 dB
Noise Floor
< -95 dBu (Residual Output Noise, 22 Hz to 22 kHz)
< -83 dBu (Master Level at Unity, -87 dB S/N, 22 Hz to 22 kHz)
SNR
-99 dB
THD+N
< 0.004% (+10 dBu, 1 kHz)

Connectivity:

Analog Inputs
10x XLR 3-Pin Balanced Mic Input
10x 1/4" TRS Insert
8x 1/4" Input (4 Stereo Pairs)
1x Stereo RCA Coaxial 2-Track Return

Power:

AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz (T 630 mA L 250 V)
AC Power I/O
1x IEC
Power Consumption
45 W (Maximum)

Physical:

Rack Mountable
No
Rackmount Size
10 RU
Dimensions
20 x 20.9 x 7.7" / 507 x 530 x 194 mm (Desk-Mounted)
19 x 4.8 x 17.5" / 483 x 122 x 444 mm (Rack-Mounted, with Underside Connectors)
19 x 7.6 x 19.6" / 483 x 193 x 497 mm (Rack-Mounted, with Rear Connectors)
Weight
24 lb / 11 kg
