Now in its 4th generation, the latest models in the MixWizard family feature enhanced styling and functions, whilst remaining faithful to the audio and build quality standards that have secured a place for the Wizards with rental companies, live venues, houses of worship, recording studios and broadcasters.

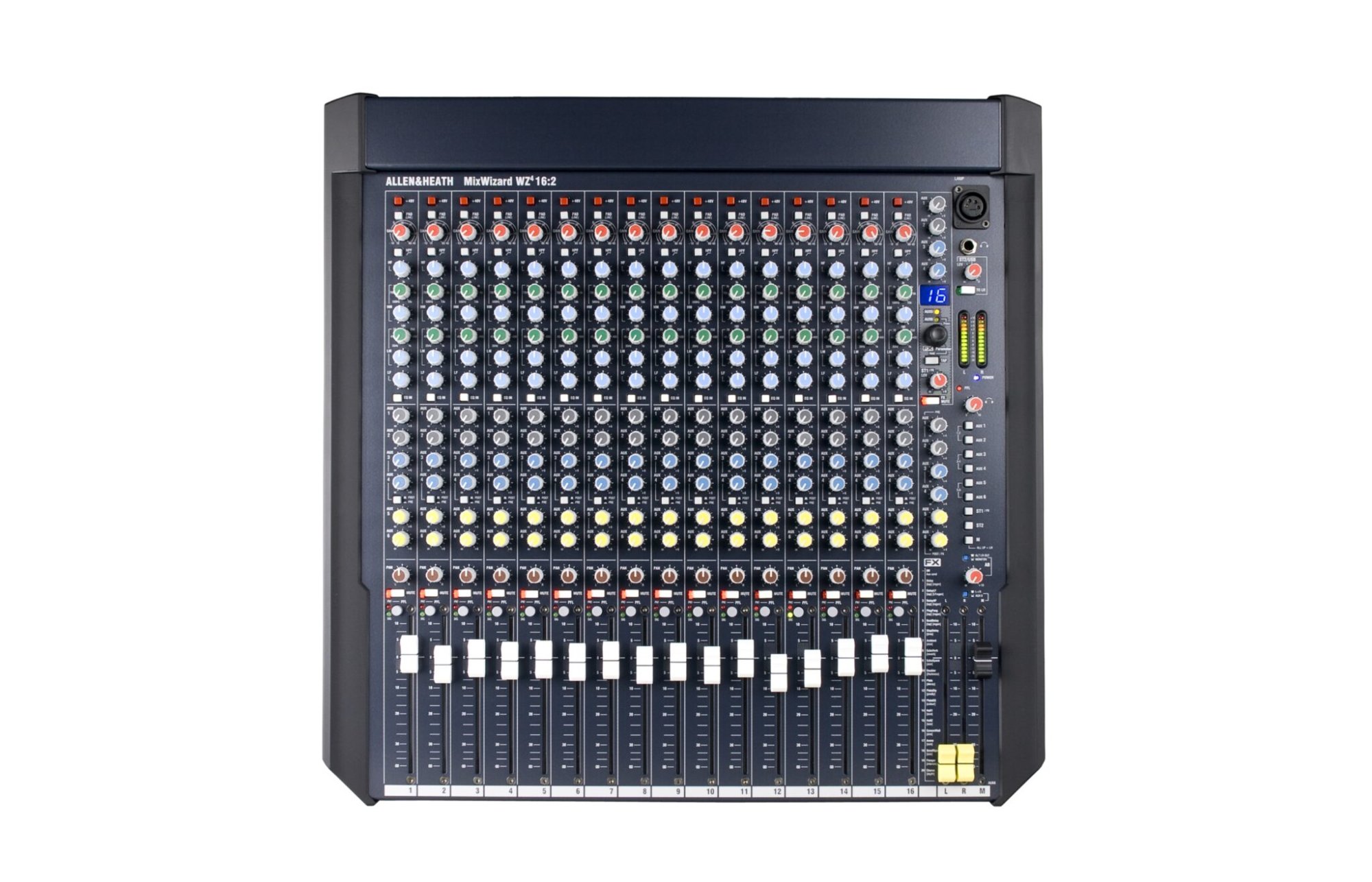

Allen & Heath AH-WZ416:2 MixWizard4 16:2 Mixer
Allen & Heath WZ4 16:2 The MixWizard series has been at the heart of Allen & Heath’s analogue range since the mid 1990s and with over 100,000 mixers sold it has earned industry standard status for its proven quality, versatility and ruggedness.
WZ4 16:2 is a true all-purpose mixer, providing a full 16 high specification mic/line inputs in a compact, straightforward format that has made it a consistent best seller.MixWizard4
Clean and Detailed Sound
The MixWizard4 preamp delivers extremely low noise, minimal distortion, wide yet smooth gain law and plenty of headroom. The preamp was developed by leading analogue designer Mike Griffin and is adapted from the design used on our legendary large-format analogue consoles.
Comprehensive Aux System
All MixWizard4 models offer a generous 6 auxes, each with its own master level rotary control and impedance-balanced TRS outputs. A clever monitoring system lets you listen to aux outputs in mono or in stereo pairs. Auxes 1-2 are routed pre-fade for monitors; auxes 3-4 are switchable pre or post-fade for monitors, FX or additional recording or zone feeds; and auxes 5-6 are routed post-fader for FX and aux-fed sub. These pre/post settings can be changed via internal jumpers.
Fits Anywhere
Our unique QCC (Quick Change Connectors) system lets you swiftly change the position of the connector panel to suit desktop, rack or flight case mounting. The hard plastic side trims can also be removed to reveal the integral rack ears.
Dual Engine Effects
WZ4 12:2 and WZ4 16:2 are both equipped with 2 stereo FX engines, providing 20 studio-quality FX presets. The FX interface has also been upgraded, with a 7-segment LED display, tap tempo and an encoder to adjust FX parameters. The FX algorithms were developed by the same in-house team that created the highly respected FX suite for our digital touring mixers.
Features:
- 19″ Rack mountable
- 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
- 100mm faders
- 4 band EQ with 2 swept mids
- 6 Aux sends
- 2x pre fade
- 2x post fade
- 2x switched
- 2 Stereo returns
- Dedicated mono output fader - Can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
- Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
- Tri-colour, 12 segment bargraph metering
- Twin FX engines with 20 studio quality FX presets
- +48V Phantom Power
- Signal and Peak LEDs
- Lamp socket
- Footswitch connector (mutes/unmutes the ST1 FX Return)
Specifications:
| Number of Analog Input Channels | |
| Number of Mic Preamps | |
| Analog Output Channels | |
| Mix Routing | |
| EQ | |
| Built-In Effects | |
| Wireless | |
| Rack Mountable |
Mixer
| Number of Analog Input Channels | |
| Number of Mic Preamps | |
| Analog Output Channels | |
| Mix Routing | |
| Faders & Level Adjustment | |
| Meters | |
| Meter Range | |
| Meter Calibration |
Signal Processing
| Gain/Trim Range | |
| Input Pad | |
| Dynamic Processing | |
| Sidechain Filters | |
| EQ | |
| EQ Parameters | |
| Graphic EQ | |
| Filters | |
| Solo/Mute | |
| Built-In Effects |
Performance
| Headroom | |
| Frequency Response | |
| Max Input Level | |
| I/O Impedance | |
| Crosstalk | |
| EIN | |
| Noise Floor | |
| SNR | |
| THD+N |
Connectivity
| Analog Inputs | |
| Analog Outputs | |
| Phantom Power | |
| Digital I/O | |
| Wireless | |
| Mobile App Compatible |
Power
| AC Input Power | |
| AC Power I/O | |
| Power Supply Output | |
| Power Consumption | |
| Lamp Power |
Physical
| Rack Mountable | |
| Rackmount Size | |
| Dimensions | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
