XB-14-2 incorporates new features based on feedback from broadcasters who have built their operations around the original XB-14. With a wealth of routing options, dual stereo channels for up to 7 stereo sources, and the addition of a dedicated Audition bus, enhanced microphone preamps and stereo channel gain range, XB-142 satisfies the demands of small radio and internet broadcasters as well as larger studios with multiple rooms.
Featuring no less than 27 logic I/O for remote control and 15 configuration switches, XB-14-2 is a highly flexible solution.
Easy to Use - Self or Producer Operated

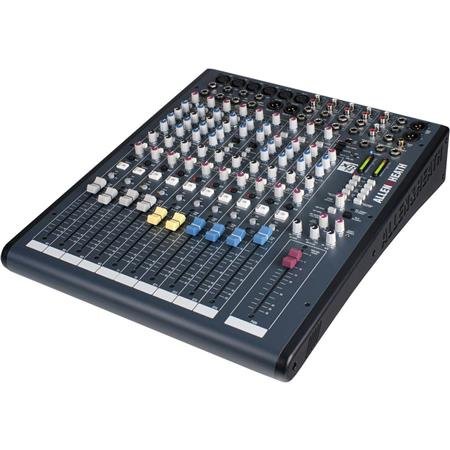

Allen & Heath AH-XB2-14 Compact Broadcast Mixer
|
|
|
|
|
|
Allen & Heath XB2-14
XB-14-2 offers a host of specialised broadcast features that normally come at a much higher price, including telephone communication (telco) channels, mic channel ON switch sensing, stereo channel start/cue outputs for playback device control, automatic muting of speaker outputs and much more.
The Evolution of the XB-14
Whether you need a mixer for a self-operated broadcast situation, or whether you have a separate studio and engineer, the XB-14-2 has the features to fit. Separate monitor mixes can be created for operator and guests or presenter, so the engineer can check levels and cue sources while the presenter or guest can listen to a different source. The engineer/producer can communicate to the guest or presenter using the Talk feature, as well as speaking off-air with telephone callers.
There is also the facility for remote control of channel mutes from the studio using the remote interface connectors – ideal for studio situated mute or ‘cough’ switches.
DuoPre Preamps
With 69dB of gain available on the mic inputs, the XB-14-2 preamps are optimised for the low-output dynamic microphones used in broadcast applications.
USB Audio Interface
The class-compliant USB audio interface features useful routing options for recording and broadcast applications.
Audition Bus
The dedicated stereo audition bus can be used for auditioning or off air recording. Press the Audition button to transfer the mix from the program feed over to the audition bus.
Telco
Two Telco channels provide a selectable clean-feed output (LR PGM, Aux or Audition bus), variable high pass and low pass filters to optimise the frequency range of telephone callers, and a Talk button.
Features:
- Professional-grade 14 Channel Compact Broadcast Mixer, ideal for live events, broadcasts, and recording studios
- Features dual Telco inputs and mic channel ON switch sensing for seamless telephone communication integration
- Equipped with dual stereo channels for mixing up to seven stereo sources and a dedicated Audition bus for pre-air auditioning
- Offers 27 logic I/O for comprehensive remote control and 15 configuration switches for tailored operation
- Duopre preamps with a two-stage design and a 69dB gain range ensure superior control over signal levels and pristine audio quality
- Comes with a built-in full duplex USB soundcard for extensive routing options and two Telco channels with selectable clean-feed outputs
Specifications:
Analog Headroom from Nominal Mix Point: 24dB
USB in & out Headroom from nominal: 14dB
Mono ON switch attenuation (dB relative to +10dBu) 1kHz/10kHz: -95/-95
TELCO fader attenuation (dB relative to +10 dBu) 1 kHz/10 kHz: -95/-95
TELCO ON switch attenuation (dB relative to +10 dBu) 1 kHz/10 kHz: -95/-95
Stereo fader attenuation (dB relative to +10 dBu) 1 kHz/10 kHz: -95/-90
Stereo ON switch attenuation (dB relative to +10 dBu) 1 kHz/10 kHz: -95/-95
TELCO clean-feed isolation from I/P (dB relative to +10 dBu) 1 kHz/10 kHz: -55/-40
Stereo separation, L in to PGM R out. dB relative to 1 kHz/10 kHz: -70/-50
Line in to PGM L/R out 0 dB gain: 0.5/-1 dB 10 Hz to 30 kHz
Stereo in to PGM L/R out: 0.5/-1 dB 10 Hz to 30 kHz
Packed: 25.35lbs / 11.5kg
