Allen & Heath AH-ZED60-14FX - Multipurpose Mixer with FX

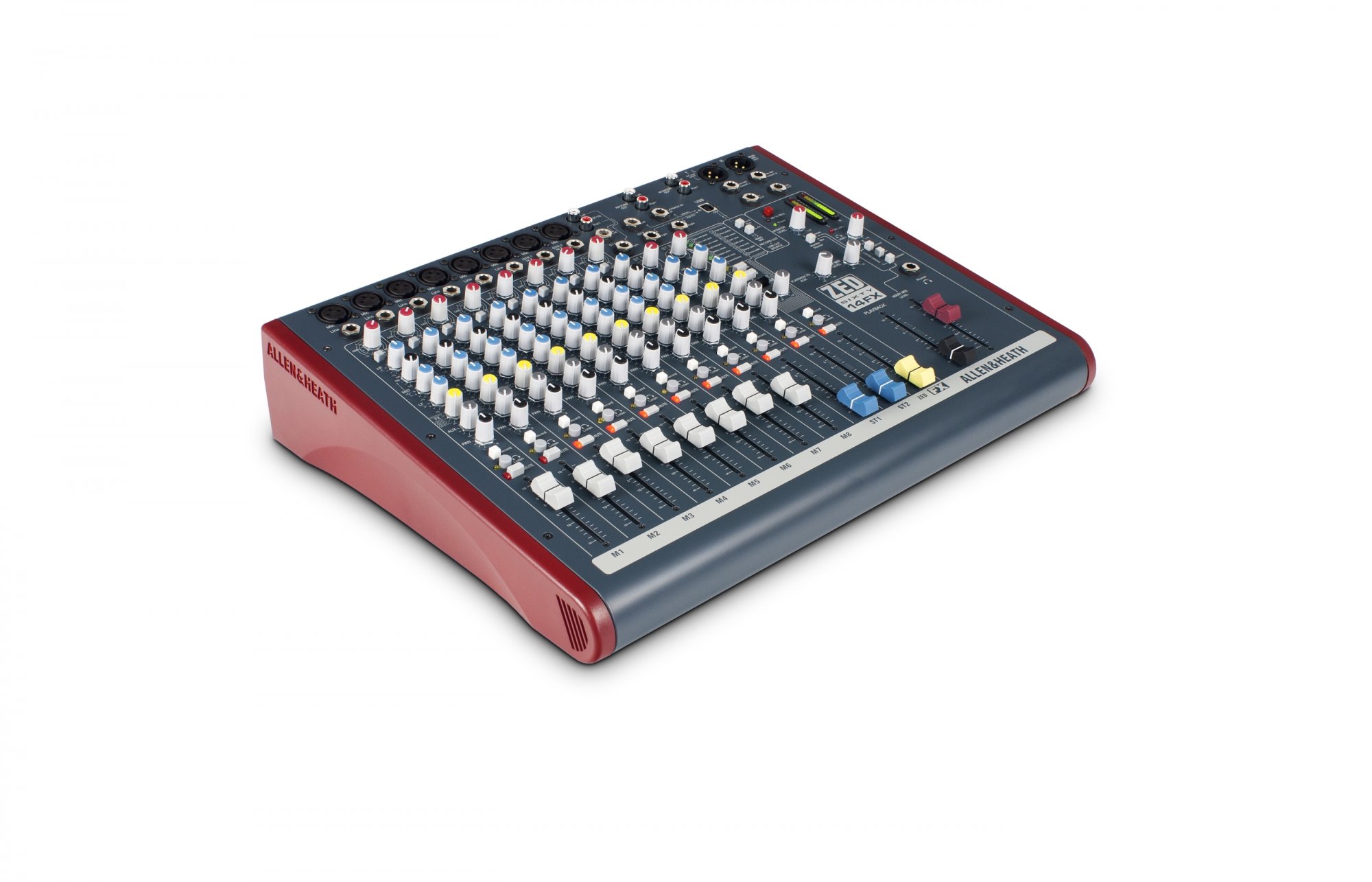

Allen & Heath AH-ZED60-14FX



Live or in the studio, ZED60-14FX is a compact, portable mixer that is ideal for small bands.

This mixer is a guitarist’s dream. Two of the 8 mono channels have high impedance jack inputs that can take a normal line level or a low level input from a guitar pickup, so guitars can be plugged straight into the mixer without the need for DI boxes. These inputs have been crafted to recreate the sound of a classic tube preamp in a combo or head amp for incredible definition and warmth. Two stereo inputs are provided for MP3/CD players or keyboards.

ZED60-14FX comes with configurable USB audio in/out, making it easy to capture a stereo recording at the gig or in the studio. The mixer is equipped with professional XLR main stereo outputs, a flexible monitoring section with headphone and speaker feed outputs, and 16 stunning FX.

Most important of all, ZED60-14FX lives up to the audio and build quality standards that have made Allen & Heath one of the most trusted names in professional audio for more than 40 years.



Integrated Effects  Add Depth With FX

The three ZED FX models feature an essential selection of 16 reverb, delay and modulation effects, crafted by our renowned in-house effects team, that can be easily dialled in to bring a performance to life.

Hi-Z Inputs  Made for Guitars

ZED Mini comes with two Guitar DI high impedance jack inputs, featuring Boost switch for instruments with very low level outputs, allowing guitars to be plugged straight into the mixer without the need for DI boxes.

USB Interface  Easy Stereo Recording

All ZED Mini mixers feature a two channel USB interface with flexible routing options so you can capture your live show or make a simple two track recording at home.

USB AUDIO FLEXIBILITY

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that’s it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:-


SEND OPTIONS:

1) Main Mix Left + Right (Post master Level)

2) Aux + FX bus (Aux is a pre-fade send, FX is a post-fade send)

3) Record Bus Left + Right (Separate stereo bus to Main Mix)

RETURN OPTIONS:

1) To Playback input (through jack socket break contacts)

2) To Stereo 2 channel (through jack socket break contacts)



ZED60: Fader Control

ZED60-10FX and ZED60-14FX feature premium quality 60mm faders on all channels for a classic mixing experience.

ZED: Rotary Control

ZED-10 and ZED-10FX feature space-saving rotary controls for channel levels, allowing for a smaller, more portable mixer.



MUSIQ

Our analogue engineers designed the MusiQ EQ especially for ZED mixers, carefully optimising the curves and target frequencies to deliver a simple to use, musical EQ that works equally well on stage or in the studio. Each ZED Mini mixer features a responsive 3-band, swept mid frequency EQ design with optimised slope (or Q factor) for equalising individual instruments.

ZED-FX

ZED60-14FX has an essential selection of 16 time-delay effects, designed for small groups who don’t want to carry around an effects unit with their gear but who still want great quality FX at their gigs and on their recordings. Our DSP engineers worked hard, crafting and refining beautiful reverb algorithms to enhance every performance. These effects are available nowhere else at this price point – this quality and integration is only available from the ZED-FX. ZED effects are easily controlled using 3 buttons with 9 display LEDs. For example, the ideal delay time can be quickly tapped-in, or the perfect amount of reverb on the lead vocal can be dialled-in. There is one-stop navigation and editing – in fact, it’s just as easy as using effects pedals. To alter effects parameters, the TAP button is held down and the up/down buttons pressed to adjust the specific parameter for that effect, for example, the decay length on PLATE, or the depth on CHORUS.



GUITAR DI

ZED60-14FX’s pre-amps are similar in design to our MixWizard range of mixers, but with a twist! Inputs 7 & 8 have a high impedance jack input capable of taking either a normal line level or a low level input from a guitar pickup. These newly designed inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage. There is a gain “Boost” switch associated with the guitar inputs which boosts gain by 26dB to cater for instruments with very low level outputs and the overdrive characteristics of the guitar inputs are very similar to a valve (tube) circuit, being asymmetric and soft. All this makes for a wonderfully natural sound to be reproduced from the instrument, full of warmth and character.

Features:

  • 8 mic/line inputs, 2 with Class A FET high impedance
  • 60mm professional quality faders
  • Responsive 3-band, swept mid EQ with MusiQ
  • Configurable USB stereo audio in/out
  • 1 pre-fade Aux send
  • 1 FX send
  • 2 stereo inputs
  • Separate 2-track record outputs
  • 16 Internal Effects
  • XLR main stereo outputs with inserts
  • Comprehensive monitoring
  • 48V microphone phantom power
  • DI level switching with Gain Boost
  • Neutrik XLRs and 1/4 inch jacks

Specifications:
Number of Analog Input Channels
12 (8 Mono / 2 Stereo)
Number of Mic Preamps
8
Analog Output Channels
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Mix Routing
Main Mix / Aux Bus/Subgroup / FX Bus
EQ
Input Channels:
3-Band EQ
Built-In Effects
3x Delay+Reverb
3x Delay
7x Reverb
1x Flanger
1x Chorus
USB I/O
1x USB-B 1.1 (I/O)
Wireless
No
Max Multitrack Recording
12 Tracks
Rack Mountable
No
Mixer
Max I/O Capacity
12x Input / 6x Output
Number of Analog Input Channels
12 (8 Mono / 2 Stereo)
Number of Mic Preamps
8
Analog Output Channels
1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono Aux Send Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Mix Routing
Main Mix / Aux Bus/Subgroup / FX Bus
Faders & Level Adjustment
8x Channel Fader
1x Master Fader
Meters
Main Meter:
2x 12-Segment LED
Signal Processing
Gain/Trim Range
Line/Mic Input:
+60 dB
1/4" Hi-Z Input:
+26 dB
Dynamic Processing
No
EQ
Input Channels:
3-Band EQ
EQ Parameters
Mono Channels:
Low: ±15 dB at 80 Hz
Mid: ±15 dB at 120 Hz to 4 kHz
High: ±15 dB at 12 kHz
Stereo Channels:
Low: ±15 dB at 80 Hz
High: ±15 dB at 12 kHz
Graphic EQ
No
Filters
Input Channels:
High-Pass: 100 Hz, 6 dB/Octave
Solo/Mute
Mute per Input Channel
Built-In Effects
3x Delay+Reverb
3x Delay
7x Reverb
1x Flanger
1x Chorus
Digital Audio
Sample Rates
32 / 44.1 / 48 kHz
Bit Depth
16-Bit
Performance
Frequency Response
Mic Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (30 dB Gain)
Line Input to Main Output:
10 Hz to 25 kHz +0.5/-1 dB (Unity Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level
XLR Input:
+11 dBu (Mono)
1/4" Line Input:
+31 dBu (Mono)
1/4" / RCA Input:
+15 dB (Stereo)
Noise Floor
Main Output:
-93 dBu (Master Level at Unity, Channel Levels at -∞, 2 Hz to 22 kHz)
THD+N
Mic Input to Main Output:
0.002% at +10 dB Gain (+10 dBu, 1 kHz)
Line Input to Main Output:
0.01% at +30 dB Gain (1 kHz)
0.003% at Unity Gain (1 kHz)
Stereo Line Input to Main Output:
0.002% at Unity Gain (+10 dBu, 1 kHz)
Hi-Z Input to Main Output:
0.015% (0 dBu)
Connectivity
Analog Inputs
2x 1/4" TRS Main Insert
8x XLR 3-Pin Mic/Line Input
6x 1/4" TRS Line Input
2x 1/4" TRS Unbalanced Hi-Z Input
4x 1/4" TS Input (2 Stereo Pairs)
1x Stereo RCA Input
Analog Outputs
2x XLR 3-Pin Main Output
1x Stereo RCA Monitor Output
1x Stereo RCA Tape Output
1x 1/4" TRS FX Send
1x 1/4" TRS Aux Output
1x 1/4" TRS Headphone Output
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
Digital I/O
No
MIDI I/O
No
USB I/O
1x USB-B 1.1 (I/O)
Wireless
No
Recording
Max Multitrack Recording
12 Tracks
Compatibility
OS Compatibility
Windows / macOS
OS Compatibility
Windows
macOS
Physical
Rack Mountable
No
Dimensions
17.3 x 13.6 x 3.7" / 440 x 346 x 95 mm
Weight
13.6 lb / 6.2 kg
Packaging Info
Package Weight
14.5 lb
Box Dimensions (LxWxH)
20.3 x 15.8 x 7.3"


WARNING:This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
