Allen & Heath AH-ZED6FX - Compact Analog Mixer - 6 Input Mixer with FX

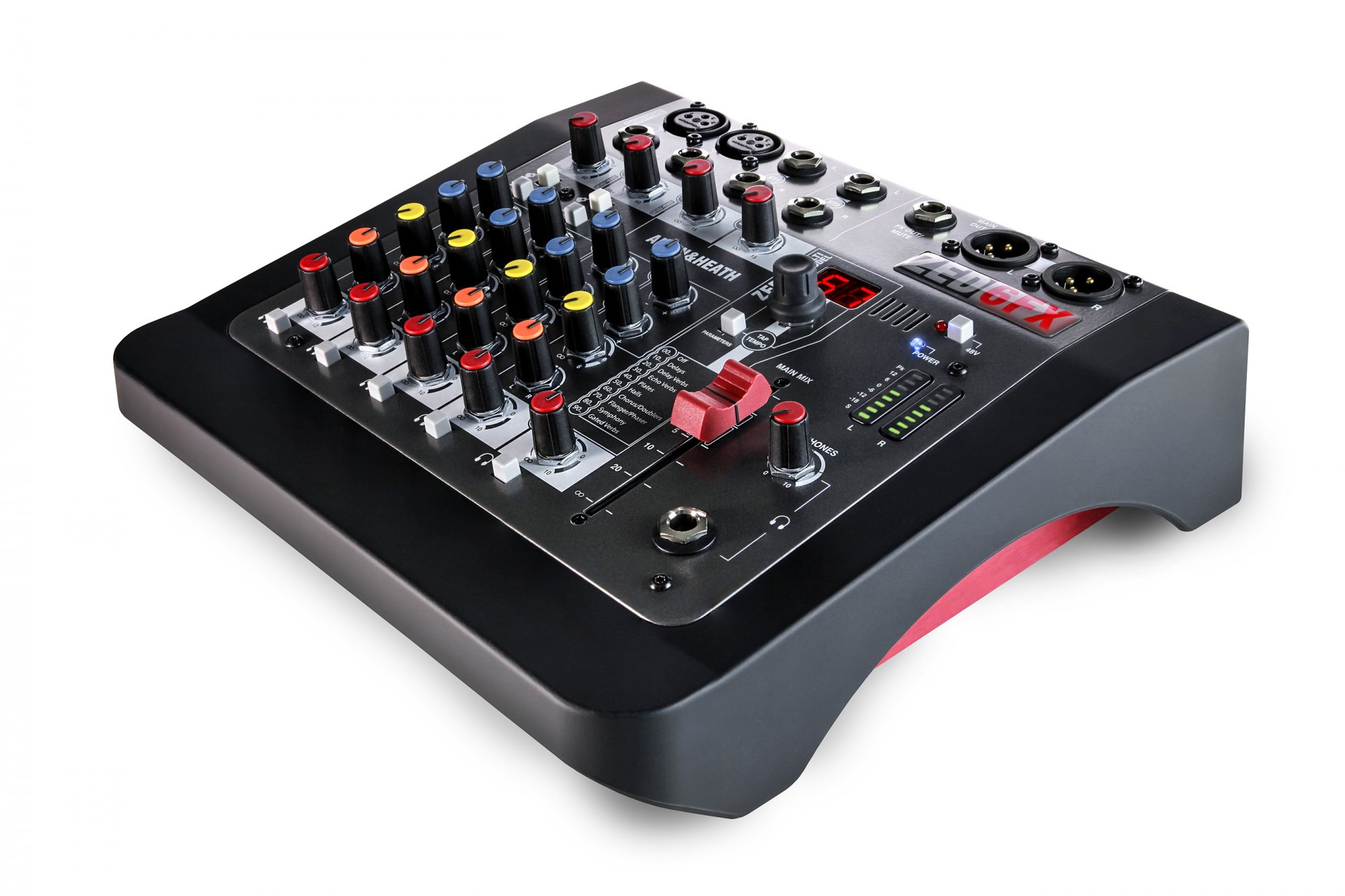

Allen & Heath ZED-6FX

Compact 6 input analogue mixer with FX

ZED-6FX delivers Allen & Heath’s renowned build and audio excellence in a compact, portable format, making it the ideal choice for quality conscious musicians, singer / songwriters and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6FX is a versatile companion for every step of the creative journey. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. ZED-6FX is the first mixer to include a specially created suite of studio quality reverbs, delays and special multi-model FX, crafted by Allen & Heath’s acclaimed in-house effects aficionados. Guitarists will be pleased to know that ZED-6FX comes with a pair of Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.


EXCEPTIONAL AUDIO QUALITY

ZED-6FX features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.


ZEDFX MULTI MODEL

ZED-6FX boasts a brand new suite of studio quality reverbs and delays, painstakingly crafted to enhance your recordings and performances. Special multi-model effects provide uniquely dynamic combinations of reverbs and delays.

ROAD TOUGH

All ZED mixers are designed and built to Allen & Heath’s legendary touring grade standards to ensure a long life in the toughest environments. All channels are on individual, vertical circuit boards and all rotary controls are secured to the front panel with a steel nut to guard against impact damage.


MADE FOR GUITARS

ZED-6FX comes with two Guitar DI high impedance jack inputs, allowing guitars to be plugged straight into the mixer without the need for DI boxes. That’s one less piece of gear to buy, carry and set up.



MusiQ   EQ for Musicians

Our analogue engineers designed the MusiQ EQ especially for ZED mixers, carefully optimising the curves and target frequencies to deliver a simple to use, musical EQ that works equally well on stage or in the studio. Each ZED Compact mixer features a responsive 2-band EQ design with optimised slope (or Q factor) for equalising individual instruments.

Build Quality   Compact and Ready to Gig

Our ZED Compact mixers are lightweight and portable without sacrificing strength and durability. Built to our exacting standards to meet the demands of life on the road, ZED Compact is a mixer you can rely on whether you’re playing live or at home.



ZED-6FX  Studio Quality FX

ZED-6FX boasts a brand new suite of studio quality reverbs and delays, painstakingly crafted to enhance your recordings and performances. Special multi-model effects provide uniquely dynamic combinations of reverbs and delays.

IT’S AN ALLEN & HEATH

Allen & Heath has been a trusted name in professional audio since 1969. The ZED technology advances, but the commitment to audio excellence and build quality endures.


Features:

  • 2 Mic / Line Inputs with separate XLR and TRS jack sockets
  • 2 Stereo Inputs with TRS jack sockets
  • 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
  • Internal FX engine with tap tempo
  • Lo-cut filter for cleaning up unwanted low frequency noise
  • 2 band EQ for easy creative and corrective tonal shaping
  • 60mm smooth travel fader on main mix
  • XLR main outputs
  • Flexible signal monitoring
  • 8 LED signal metering
  • 48V Phantom Power for condenser mics
  • Robust internal power supply

Specifications:

Number of Analog Input Channels
6 (2 Mono / 2 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output
1x Stereo Headphone Output
Mix Routing
Main Mix / Bus/Subgroup
EQ
2-Band EQ
Built-In Effects
Yes
Wireless
No
Rack Mountable
No
Mixer
Number of Analog Input Channels
6 (2 Mono / 2 Stereo)
Number of Mic Preamps
2
Analog Output Channels
1x Stereo Master Output
1x Stereo Headphone Output
Mix Routing
Main Mix / Bus/Subgroup
Faders & Level Adjustment
4x Channel Fader
Meters
Main Meter:
2x 8-Segment LED
Signal Processing
EQ
2-Band EQ
EQ Parameters
Low: at 80 Hz
High: at 12 kHz
Graphic EQ
No
Filters
2x High-Pass: 100 Hz
Solo/Mute
No
Built-In Effects
Yes
Connectivity
Analog Inputs
2x XLR 3-Pin Mic Input
2x 1/4" TRS Line Input
4x 1/4" TRS Line Input (2 Stereo Pairs)
Analog Outputs
2x XLR 3-Pin Main Output
1x 1/4" TRS Headphone Output
1x 1/4" FX Output
Phantom Power
Yes
Digital I/O
No
Wireless
No
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
No
Dimensions
3.5 x 9.8 x 9.3" / 88.9 x 246.4 x 236.2 mm
Weight
3 lb / 1.4 kg
Packaging Info
Package Weight
4.95 lb
Box Dimensions (LxWxH)
14.9 x 12 x 5.6"
