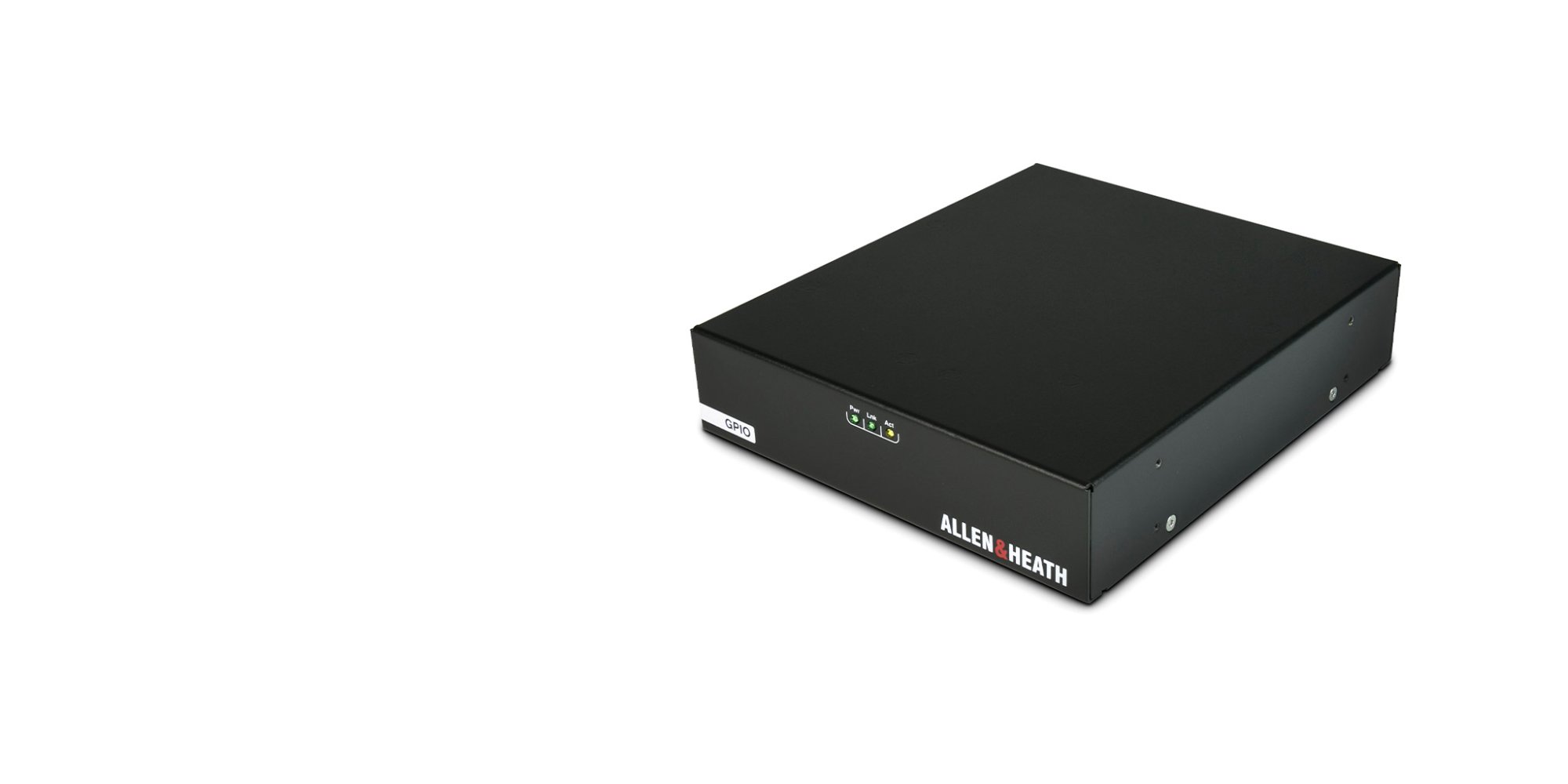

Up to 8 GPIO modules can be connected to an AHM, Avantis or dLive system – directly or via a 100Mb/s network switch – using a Cat5 cable.
Features:
- For AHM & dLive/Avantis
- TCP/IP PoE
- Up to 8 networked GPIO units can be added to a AHM/dLive/Avantis system
- Networked Cat5 connection to AHM, Avantis mixer, dLive MixRack or Surface (<100m)
- 8 opto-isolated inputs
- 8 normally open (N/O) relay outputs, one of them configurable to Normally Closed Output (N/C)
- Industry standard Phoenix connectors
- Freestanding or rack-mount (1u / ½ Width) operation
- PoE (IEEE 802.3af-2003) compliant
- 2 10V outputs (500mA max)I/O parameters configured via:
- AHM System Manager (PC or Mac)
- Avantis Director (PC or Mac) or Mixer
- dLive Director (PC or Mac) or Surface
