The uncluttered top panel makes control quick, easy and intuitive for the musician. Each key is assignable to a single mono or stereo source or to a group of channels, for instance an entire drumkit. ME-1s connected to a dLive, Avantis or SQ mixer automatically pick up names from the console, and custom names can also be displayed. Once the perfect mix has been crafted, it can be saved to one of the 16 onboard preset slots on the ME-1.

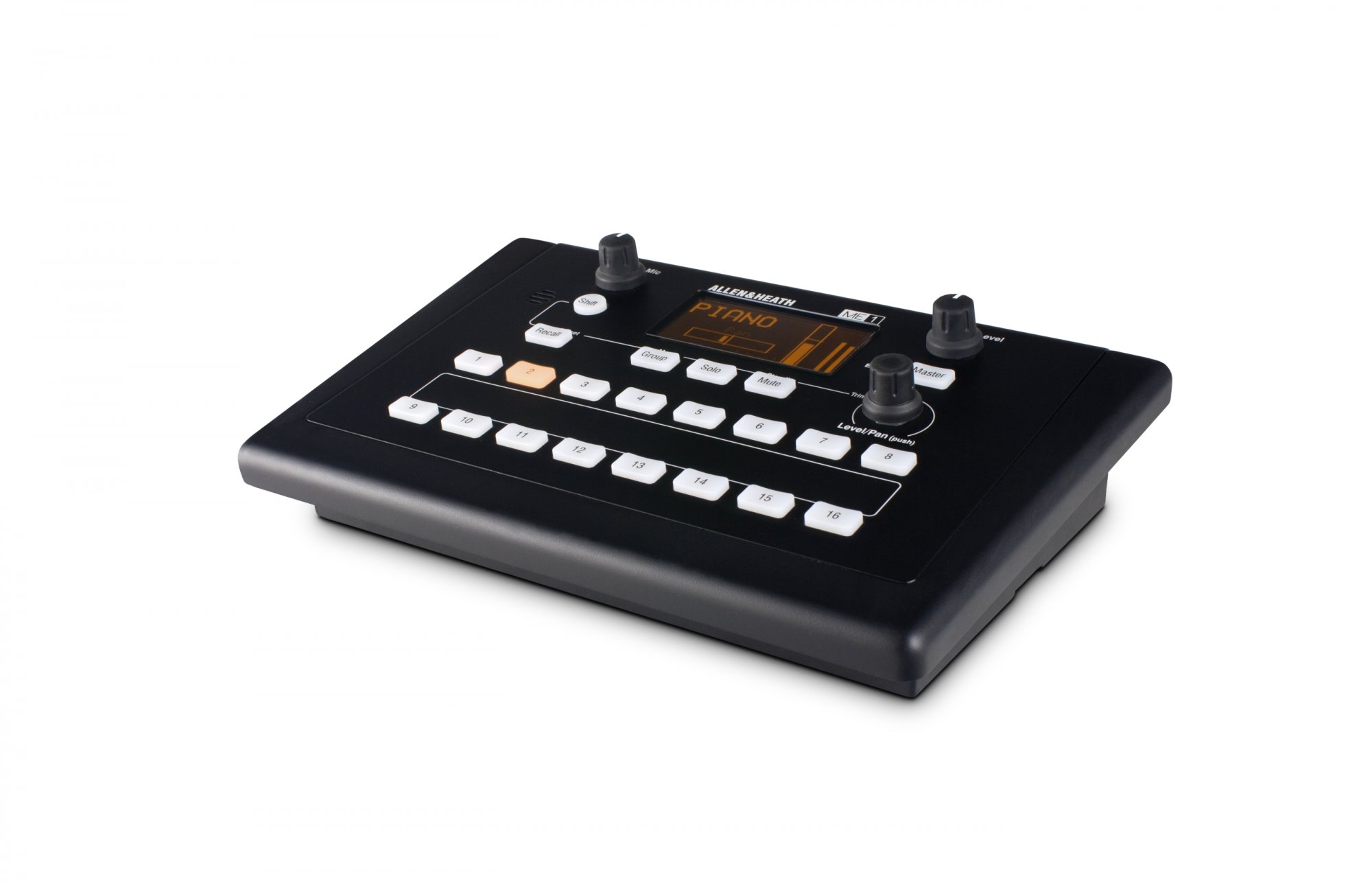

Allen & Heath AH-ME-1 - 40 Channel Personal Monitor Mixer
|
|
Allen & Heath ME-1 Personal Monitor Mixer
ME-1 is probably the most sophisticated personal mixer on the market, giving precision control over up to 40 channels to satisfy the most demanding ears.
40 Sources
Control up to 16 stereo/mono inputs or groups with level and pan controls for each input.
OLED Screen
Dimmable high-quality screen shows names, levels, pan, meters and more.
16 User Presets
Levels, pan and mutes can all be stored and recalled at the touch of a button. Presets can be saved to USB and easily transferred to different ME-1s.
Groups
Sources can be grouped within the ME-1, so each performer can use different groups without consuming buses on the main console.
Powerful Yet Easy To Use
Neat and Tidy
The included headphone hanger and mic stand bracket ensure that everything the performer needs is within arms reach, and helps keep the stage neat and tidy. ME-1s can be powered via PoE to reduce onstage cabling further.
Designed for Performers
The top-panel ambient mic keeps performers in touch with the stage sound and lets them hear the audience and communicate with each other without needing to pull out their ear pieces.
An easy to use Master 3-band EQ and Limiter protects performers ears and allows them to fine-tune the overall tone of their mix to compensate for differences in headphones.
Compatible With:
dLive
Avantis
SQ
Qu
Features:
- 40 Inputs with level and pan control
- Dimmable OLED screen
- 16 Assignable keys
- 3.5mm and 1/4” headphone outputs
- Master 3 band EQ and Limiter
- Solo and Mute keys
- Aux Input for MP3 players, click tracks etc
- Built-in signal generator
- Mic stand bracket and headphone hanger included
- Mains or PoE powered
- Daisy chain or use standard PoE Ethernet hubs
Custom Naming
ME-1 can display custom names for all channels and groups. ME-1s connected to a dLive or SQ mixer automatically pick up names from the console.
Built-in Ambient Mic
The ambient mic keeps performers in touch with the stage sound and lets them hear the audience and communicate with each other without needing to pull out their ear pieces.
Which ME is right for ME?
Although superficially similar, ME-1 and ME-500 are quite different solutions for different types of users and scenarios. For resident artists (such as a broadcast house band or church praise band), shows with high channel counts and plenty of rehearsal time, ME-1 allows the engineer to configure each unit to perfectly reflect each artist’s tastes and needs. For budget-conscious or low channel count applications, or for more impromptu scenarios where the engineer and artists have very limited soundcheck time (festivals being the typical example), ME-500 is a great solution for getting the show up and running with minimum fuss.
ME 3rd Party Options
The ME-U hub can be fitted with a Dante or MADI option card enabling the connection of 3rd party digital mixing systems.
ME-1 and ME-500 mixers connected directly to the ME-U are powered via PoE. Additional ME-1 and ME-500 mixers can be daisy-chained and powered via external PSU. Multiple ME-U hubs can be daisy-chained together if more than 10 ports are required.
ME-1 and ME-500 can be used as drop-in replacements for older AVIOM® A-16ii units.
DiGiCo and ME
The DMI-ME option card enables selected DiGiCo consoles to send up to 40 channels to a ME system.
