ME-1 and ME-500 mixers connected directly to the ME-U are powered via PoE. Additional ME-1 and ME-500 mixers can be daisy-chained and powered via external PSU. Multiple ME-U hubs can be daisy-chained together if more than 10 ports are required.
Allen & Heath AH-ME-U - 10 Port PoE Monitor Hub
|
|
Allen & Heath ME-U - 10 port PoE Monitor Hub for Parallel Connection

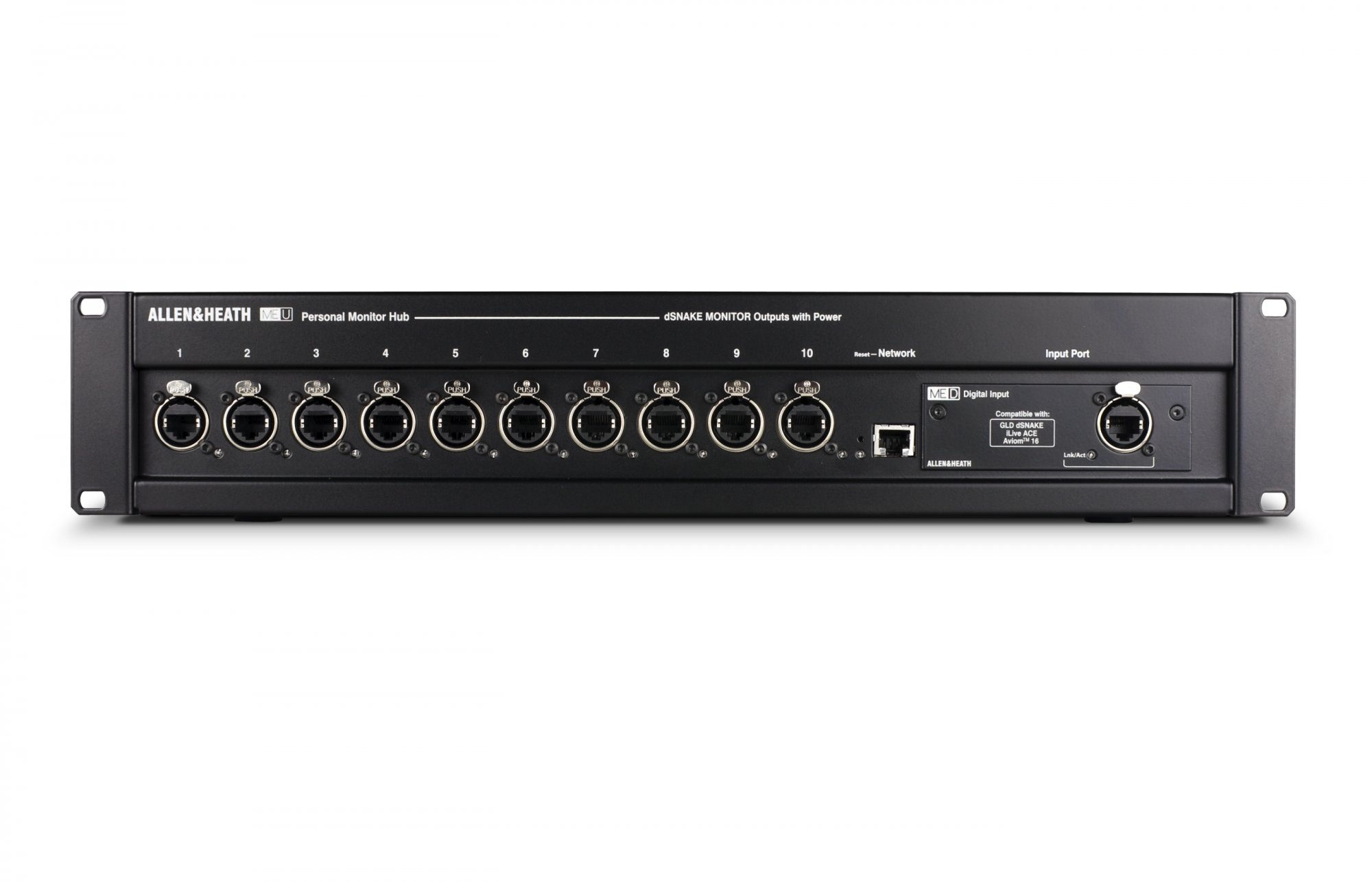

ME-U is a touring grade, 10 port PoE hub providing power and audio to multiple ME-1 and/or ME-500 personal mixers. ME-U’s default input card allows seamless integration with Allen & Heath dLive, SQ and Qu mixers. Fitting a Dante or MADI option card to the ME-U allows users of other pro digital mixer brands to feed up to 40 sources to ME-1s, or up to 16 sources to ME-500s.
As Big (Or Small) As You Need
The ME system can scale effortlessly from one mixer to hundreds.
ME in the Studio
When fitted with the appropriate option card, the ME-U can be connected to a MADI or Dante equipped audio interface for use in recording studios, bringing all the benefits of the ME Personal Mixing System to recording musicians and engineers.
Tour Ready
The ME-U’s touring grade build quality is designed to withstand the rigours of the road and includes 2u rack ears.
Simplified Cabling
Each port on the ME-U provides both audio and power to a ME personal mixer, cutting down on cables and keeping the stage tidy.
3rd Party Compatible
Optional Dante and MADI cards open up the ME Personal Mixing System to 3rd party mixers and audio interfaces.
Browser Based Setup
Connect your computer to the network port for advanced configuration via a browser.
Compatible With:
dLive
Avantis
SQ
Qu
Features:
- 10 ports with locking Ethercon connectors
- Each port provides power + audio to a ME-1 or ME-500
- Link 2 hubs for more ports
- Touring grade build quality
- 2U rack or desk mounting
- Connected ME-1s automatically pick up channel names from SQ or dLive mixers
- Browser-based setup of unit name and IP address, and manual entry of channel names
When to use ME-U
If you’re using Allen & Heath digital consoles, ME-U gives you the option to take your ME system to the next level of professionalism, eliminating the clutter of separate power supplies for each directly connected ME-1 or ME-500 unit and providing a high quality, road-proven alternative to standard PoE hubs.
If you’re using other console brands, ME-U is your gateway to the ME system, with MADI, Dante and Waves SG option cards allowing a digital feed of up to 40 sources from third party systems.
ME 3rd Party Options
The ME-U hub can be fitted with a Dante, MADI, Waves, or DiGiCo option card enabling the connection of 3rd party digital mixing systems.
ME-1 and ME-500 mixers connected directly to the ME-U are powered via PoE. Additional ME-1 and ME-500 mixers can be daisy-chained and powered via external PSU. Multiple ME-U hubs can be daisy-chained together if more than 10 ports are required.
ME-1 and ME-500 can be used as drop-in replacements for older AVIOM® A-16ii units.
