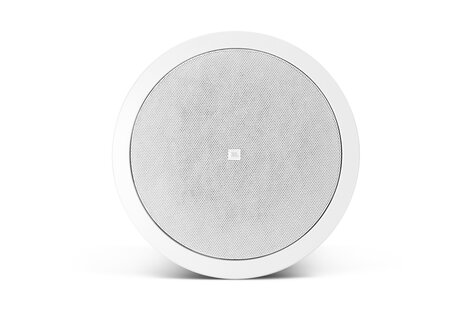

JBL C26CT-LS 6.5" Coaxial Ceiling Speaker, 70V, Life Safety (PAIR)
The JBL Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems. The Control 26CT-LS is perfectly suited for a wide variety of applications from casinos and hotels to upscale restaurants and themed locations. High power handling, wide frequency response and low distortion make the Control 26CT-LS ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area.
Features
UL1480 UUMW Listed for use in Fire Alarm and/orEmergency Communication Systems.
Coaxially mounted 165 mm (6.5") woofer withbutyl rubber surround and 19 mm (3/4") titanium-coated diffraction-loaded tweeter
High power, wide frequency response and low distortionfor high sound level capability
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
Specifications
Frequency Range: 80 Hz - 20 kHz
Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
Transformer Taps:
70V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, & 15W
Nominal Coverage Angle: 110° conical coverage
Directivity Index (DI): 4.6 averaged 500 Hz to 4 kHz
Rated Maximum SPL: 107 dB @ 1 m (3.3 ft)
Low-Frequency: 165 mm (6.5") Polypropylene-coated, 1" coil on aluminum former
High-Frequency: 19 mm (3/4") Titanium coated polyester
