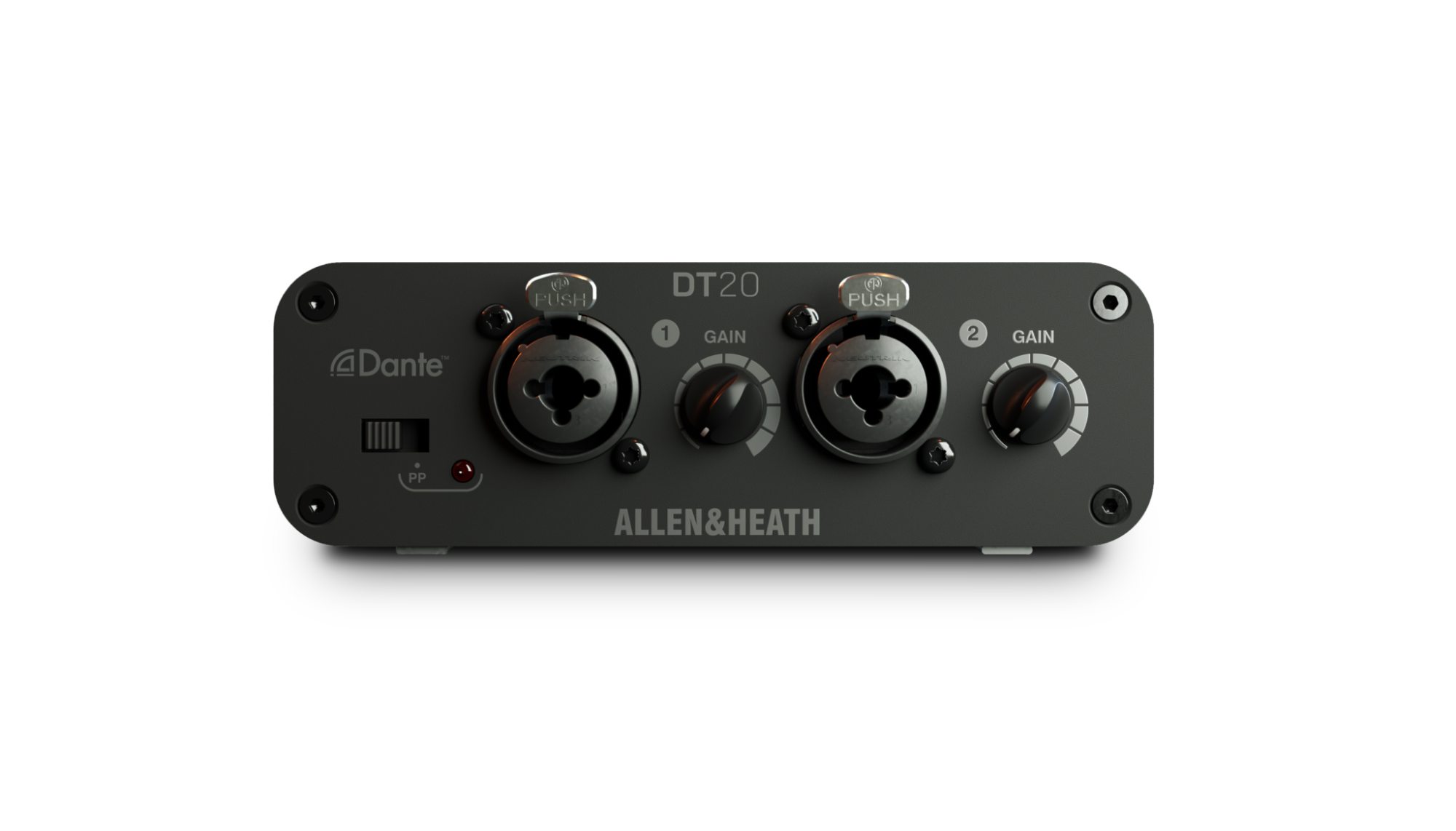

Allen & Heath AH-DT20-X
Allen & Heath's DT20 is a compact 48kHz/96kHz Dante interface enabling convenient placement of 2 mic/line inputs wherever you need to get analogue audio into a Dante network.
Audio professionals in need of a portable and rugged Dante input interface will appreciate the Allen & Heath DT20-X, a cost-effective, compact 48/96 kHz Dante interface enabling two combo XLR-1/4" mic/line inputs with 48V phantom power, ideal for a variety of fixed installation and AV / hire / portable applications. The DT20-X is designed to be used with any Dante-equipped Allen & Heath mixer or AHM system as well as with third-party Dante systems.
The DT20-X is housed in a compact, rugged aluminum enclosure and includes a 12 VDC power supply and rubber feet. The unit can be easily mounted under a table, podium, etc. for local mic connections. Should you wish to rackmount the DT20-X, separately sold rack ears and a rack-mount kit are available.
Easily Add Line Inputs to a Dante Network
Ideal for both fixed installation and AV hire / live applications, DT20 can be used with any Dante-equipped Allen & Heath mixer or AHM system, as well as in third party Dante systems.
PoE or PSU
The unit can be PoE powered or powered via a DC 12V supply. Two versions are available: the standard DT20 with power supply and rubber feet, or the DT20-M which includes surface mounting ears (and no power supply).
Surface Mount
Thanks to its compact format, DT20 can be easily mounted under a table, podium etc. for local mic connection. The DT20-M version ships with surface mounting ears for visually unobtrusive installation.
Rack Mount Kit
An optional rack mount kit is available for installation of up to two DT units in a 1U 19″ slot onstage or at FOH.
The DT20 is compatible with any of our digital mixers that can be fitted with a Dante card. It is also compatible with Dante equipped 3rd party hardware.
dLive
Avantis
SQ
AHM
