DataVideo iCAST 10NDI MK II - 4-Channel All-in-one Streaming Switcher

DataVideo iCAST 10NDI MK II 4-Channel All-in-one Streaming Switcher

iCAST 10NDI MKII is an innovative live production solution that combines a switcher, camera controller, and streaming encoder into a single compact device. Connect various inputs, such as PTZ cameras, and laptops for presentation slides, to effortlessly create visually engaging presentations.

With its built-in streaming encoder and recorder, you can conveniently stream your main program (PGM) output to multiple platforms and simultaneously record it onto an SSD card. This ensures your content is readily available for live broadcasting and later use or archiving.'

iCAST 10NDI MKII is undoubtedly a highly efficient and user-friendly solution for video streaming and recording.


iCAST 10NDI MK II

A hybrid event switcher designed for classroom, lecture capture, conferencing with all the I/O needed for producing, streaming, recording, and conferencing with Zoom, MS Teams, and other platforms. A 2" LCD screen interface with presets for screen layouts, camera angles, and dedicated buttons for activating event streaming and recording.

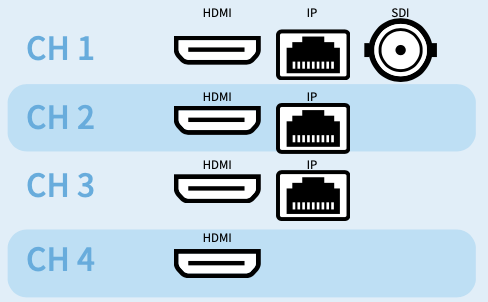

Multiple Video Input Interfaces

iCAST 10NDI MKII has four video inputs consist of one SDI/HDMI selectable port, and three HDMI only ports. iCAST 10NDI MKII accepts videos from various professional cameras, laptops and document cameras.

Notably, it supports up to 3 NDI signals, embracing the power of network-based video streaming. Additionally, its RJ-45 port allows for receiving IP videos, using RTMP(S) or SRT protocols. This array of interfaces ensures seamless compatibility with various video devices, making the iCAST 10NDI a highly adaptable solution for diverse live streaming and broadcasting needs.



Dual Multiview Modes

iCAST 10NDI MKII provides an intuitive preview of your output sources. You can view them either horizontally or vertically (a new technology for viewing videos on mobile devices) and preview these mode changes on a Multiview screen.


Multiple PGM Modes

In addition to displaying a full screen view of the program out video, you can also stream the four input videos live to your audience.

The iCAST 10NDI MKII offers five Multiview layouts to allow you to show your input videos all at the same time. The videos can be streamed to all corners of the world and your audience can, with zero delay, participate in your events using a receiver/decoder, personal mobile device, or a computer.


Stream Out

You no longer need multiple devices to stream your video. Stream directly to your preferred platform using just one iCAST 10NDI MKII.

iCAST 10NDI MKII supports NDI | HX input and output. Another alternative to broadcast a quality low latency video transmission.


Decode up to 3 NDI Channels

One Ethernet Cable with NDI® | HX Technology.

There is no need for multiple cables and complicated setup. Single-wire concept helps you to decode video and audio over only one Ethernet cable for live video switching.


Vertical Streaming for Video Playback on Social Media

Of all videos streamed, up to 50% of the videos are viewed on mobile devices and 94% of the mobile users hold the phone vertically to view the video. iCAST 10NDI MKII provides vertical streaming which can be generated with only a few basic settings.



Supporting SRT Protocol so that iCAST 10NDI MK II Works Well Even When You Have Low Bandwidth

Video latency often results when there is insufficient network bandwidth. iCAST 10NDI MKII supports SRT protocol which mitigates packet loss when the network becomes unstable. Sometimes RTMP may give you stuttering viewing experience but SRT will solve your problem.


Add dvCloud to Enhance Your Streaming Experience

dvCloud, a paid service, is a professional streaming platform developed by Datavideo. Once you've logged in, you can manage all the streaming channels that you have created. You can stream your video to at most 25 platforms at the same time without any time limit while backing up the video on the cloud automatically for future downloads. iCAST 10NDI MKII, SRT and dvCloud form a low latency, secure and reliable streaming workflow.

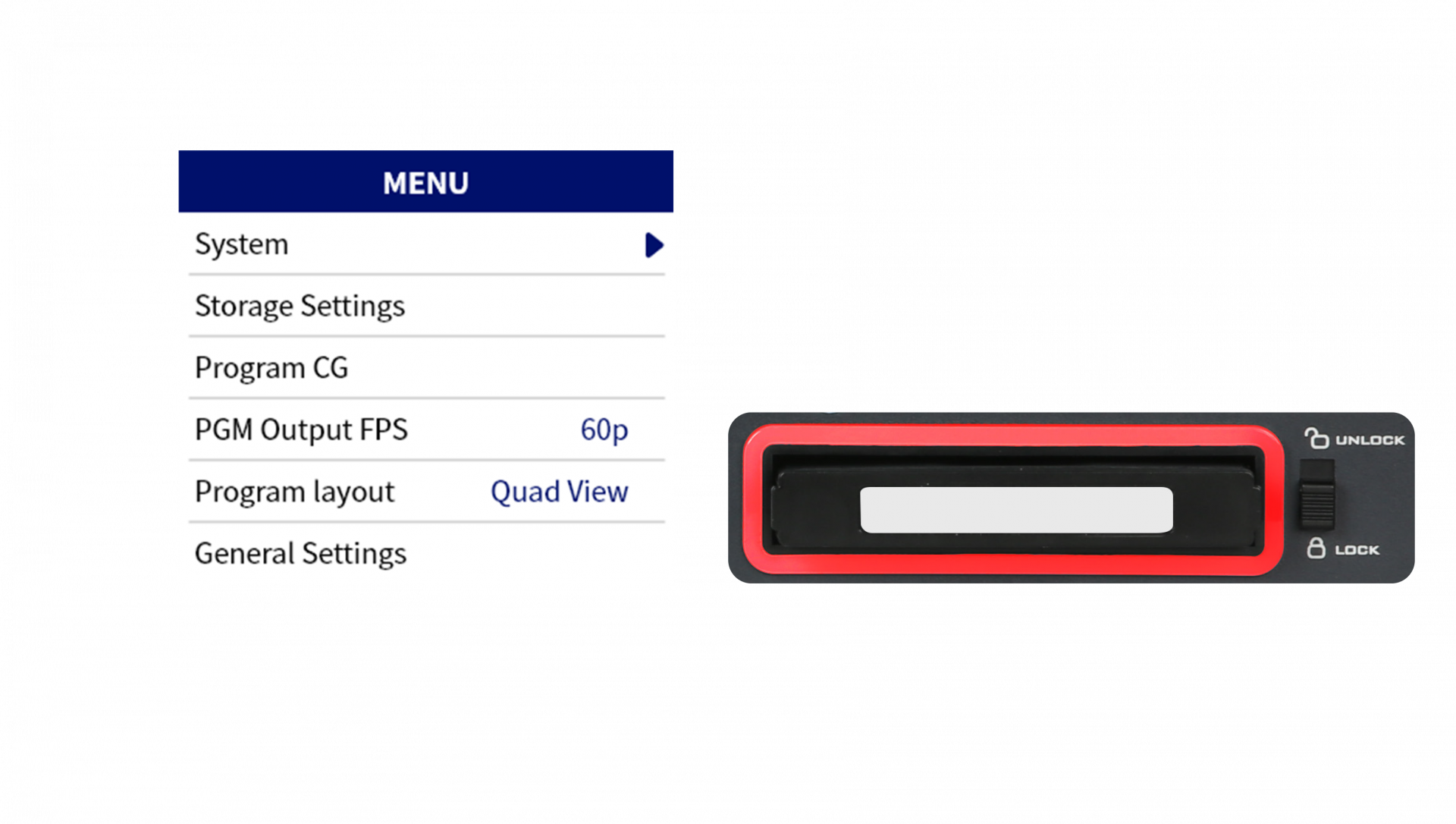

Recording: Easy-to-Read LED Indicator

A protruding frame like LED indicator allows you to easily see its color. A red indicator means that the video is being recorded and a green indicator appears when the record function enters standby mode.

The 2" LCD screen on iCAST 10NDI MKII allows you to view the record status of all video channels.



PGM Recording and Streaming of Your Main Program Output

PGM recording allows you to capture and stream your main program output, making it ideal for live broadcasts, presentations, or archiving your content for later use.


H.264 Encoding to Back up HD Videos

A built-in professional recorder records using H.264 video encoding with configurable resolution, frame rate, video bitrate, etc.


Recording Resolution

Supports up to Full HD 1080p50/60 broadcast record quality with a low file size so it is often used for long time recording. Even with a high data compression ratio, fine details of the image can still be retained as well as high recoverable color information.


UVC Output for Zoom Meeting / Microsoft Teams Application

The iCAST 10NDI MKII now supports UVC output, making it even more versatile for video conferencing applications like Zoom Meetings and Microsoft Teams. With this new feature, users can seamlessly connect the iCAST 10NDI MKII to their computers as a webcam, ensuring high-quality video output without additional capture devices. This enhancement provides a simple and efficient workflow for professional virtual meetings and live productions.

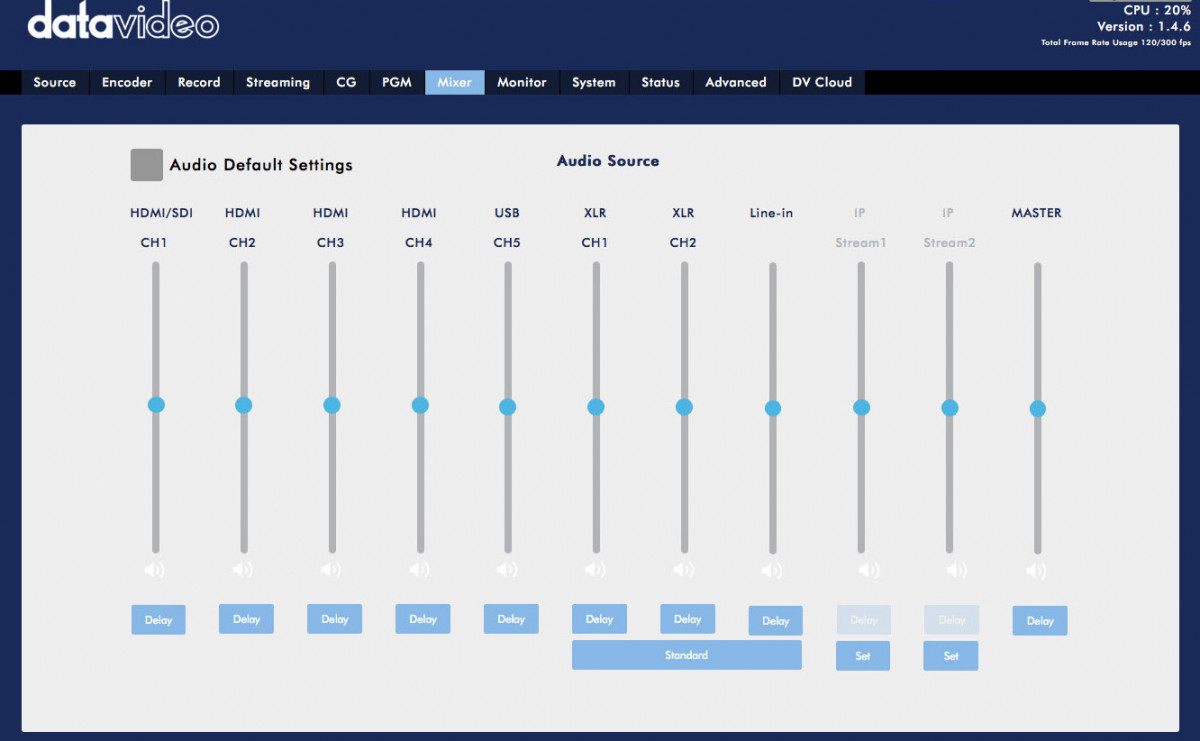

Multi-Channel Audio Mixing and Audio-to-Video Synchronization

In addition to embedded audio, we have also provided input ports for external audio such as XLR port for connecting microphones, and RCA terminals for audio players.

The Web audio, the most popular audio source, is another external audio source. You can easily perform professional audio mixing with iCAST 10NDI MKII and at the same time switch between AES and EBU modes so that your output audio will always be compatible with various audio systems in different countries without issues such as unstable audio volume and the audio and video out of sync error.



Variety of Audio Input and Output Ports

XLR and stereo RCA ports for external analog audio and a 3.5 mm headphone jack for audio monitoring.


Audio Delay

iCAST 10NDI MKII is capable of independently delaying each audio channel by adjusting the delay time in order to eliminate the audio and video out of sync error.

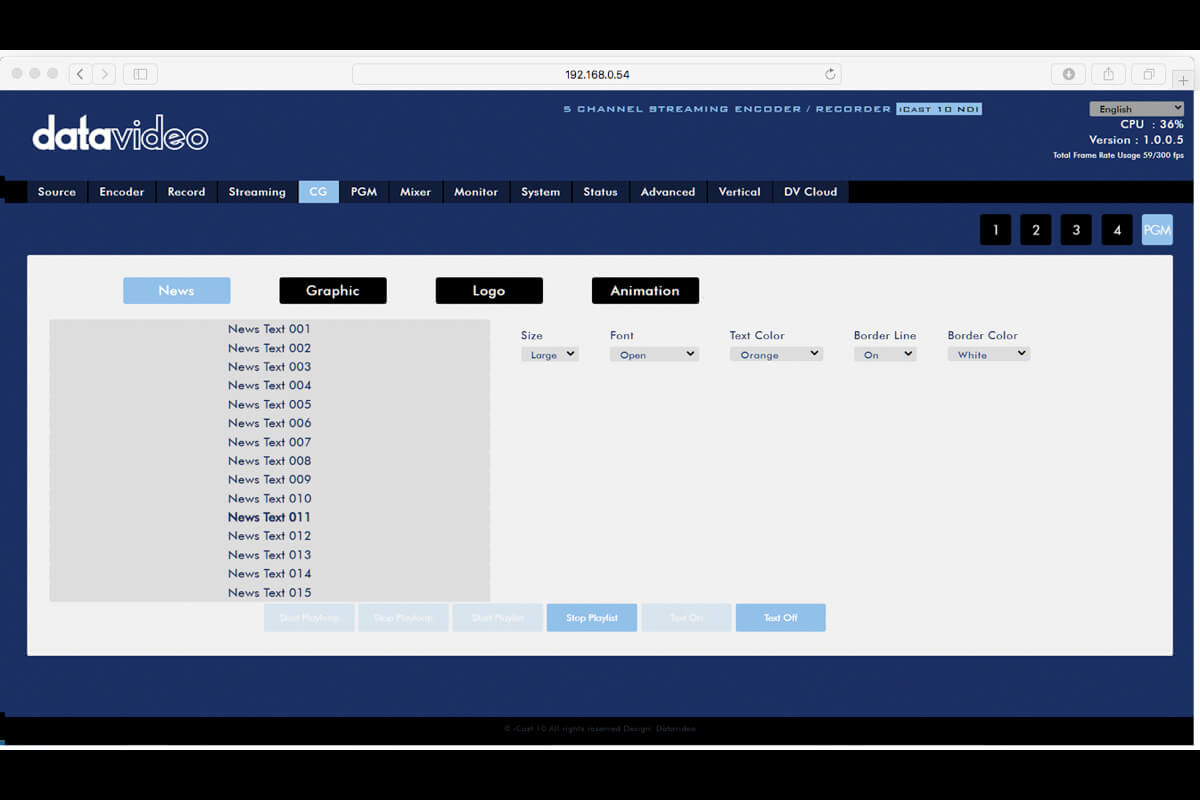

Character Generation

iCAST 10NDI MKII allows you to add graphic elements such as logos, titles, text, and images to any input video channels or the program output. You can add course chapters text or workflow diagram images to your program.



Custom Real-Time Captions and Subtitles for Your Programs Such as News Broadcasts

Transcribe audio by entering subtitles line by line using News CG then play subtitles in real time by simply tapping the space bar on the keyboard.


Adjust Size, Position, Color, and Borders

Highlight the information that you wish to convey to your audience. You can also transcribe audio by entering subtitles line by line using News CG after which you will be able to play subtitles in real time by simply tapping the space bar on the keyboard controller.


Multiple Control Protocols

iCAST 10NDI MKII supports multiple control methods which are DVIP, RS-232, Web UI and the LCD screen. The LCD screen can be found on the front panel of the device. DVIP is a control protocol developed by Datavideo for controlling peripheral devices such as cameras, switchers and recorders, allowing you to create a complete video production environment.


Web UI and Touch Panel Controller

Connect TPC-700P, an external touch panel controller, via DVIP to gain access to an intuitive and easy-to-use graphical user interface.

The iCAST 10NDI MKII APP is installed on the TPC-700P touch panel controller along with many frequently used control settings. The responsive touch panel allows you to easily switch between different control modes, adds versatility to video production and reduces operation complexity.


Specifications
