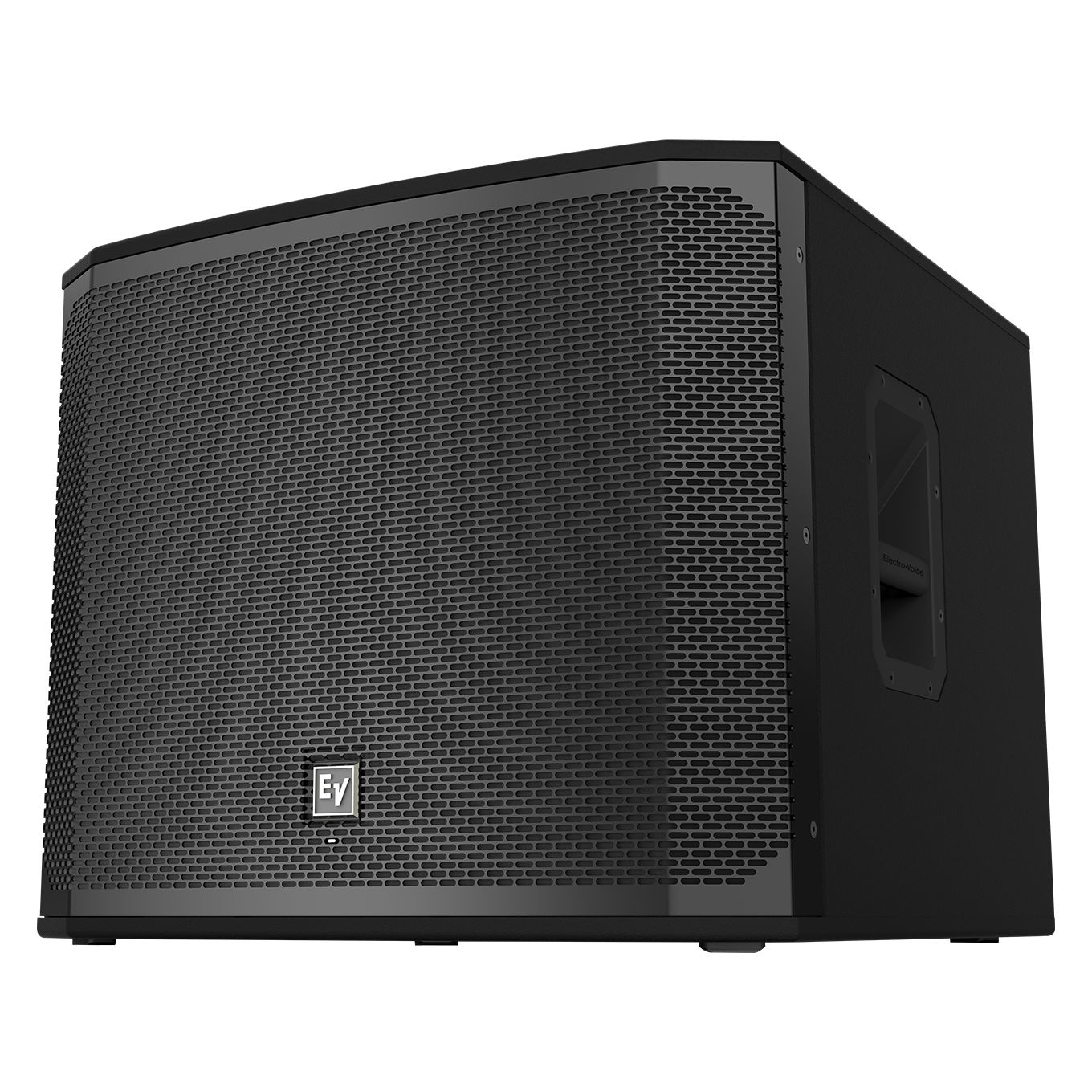

Electro-Voice EKX-15S - 15" Passive Subwoofer
The EKX series combines legendary EV sound quality and reliability with the latest technology — all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications. The EKX series features eight models (four powered and four passive), including 12" and 15" two-way models and 15" and 18" subwoofers. EKX is positioned above the ZLX and ELX series and below the ETX series.
Features- 1,600 Watts (peak), 133 dB peak SPL on the EKX-15S utilizing high sensitivity transducers designed and engineered by EV.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Large slot ports for low distortion and excellent bass extension.
- Metal grille reinforcement bar (two bars on theEKX-18S).
- M20 threaded pole mount plate.
- Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
- Connector Type: Dual NL4
- Enclosure Material: 15 mm, plywood with EVCoat
- Frequency Response (-10 dB): 40 Hz - 300 kHz Half Space Measurement
- Frequency Response (-3 dB): 60 Hz - 100 Hz Half Space Measurement
- Grill: 18 AWG steel with powder coat
- LF Transducer: EVS-15C 381 mm (15 in)
- Maximum SPL: 133 dB
- Minimum Impedance: 7.5 Ohm
- Nominal Impedance: 8 Ohm
- Power Handling (Continuous / Peak): 400 W / 1600 Watts
- Recommended High-Pass Frequency: 35 Hz
- Dimensions (HxWxD): 17.91" x 20.87" x 21.69" (455 x 530 x 551 mm)
- Weight Net: 54.9lbs (24.9 kg)
- Shipping Weight: 69 lbs (31.3 kg)
