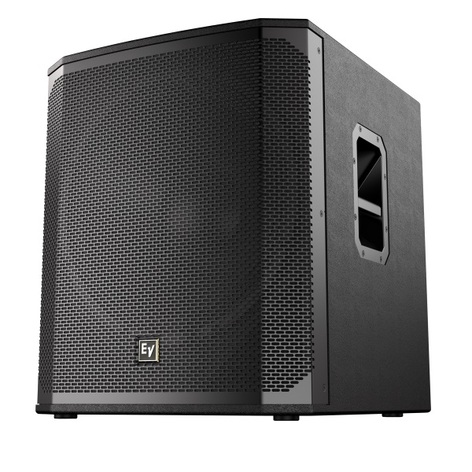

Electro-Voice ELX200-18S 18" Passive Subwoofer

The Electro-Voice ELX200-18S is an 18" passive subwoofer.

ELX200-18SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (18-inch EVS-18L woofer).

The QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.

Specifications

• Available Color: Black
• Connector Type: (2) XLR/TRS combo jacks and (2) XLR link outputs
• Depth: 22.6" (574mm)
• Enclosure Material: 15 mm plywood with EVCoat
• Family: ELX200
• Frequency Range (-10 dB): 40 Hz – 145 Hz
• Frequency Response (-3 dB): 47 Hz – 105Hz
• Grill: 18 AWG steel with powdercoat
• Height: 23.62" (600mm)
• LF Transducer: EVS-18L 457 mm (18 in)
• Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
• Max. SPL/1m (calc): 132dB
• Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
• Power Rating: 1200W
• Powered or Passive: Passive
• Shipping Weight: 72.97lbs (33.1kg)
• Speaker Type: Subwoofer
• Weight Net: 63.93lbs (29kg)
• Width: 19.96" (507mm)
• Woofer Size: 18inch
