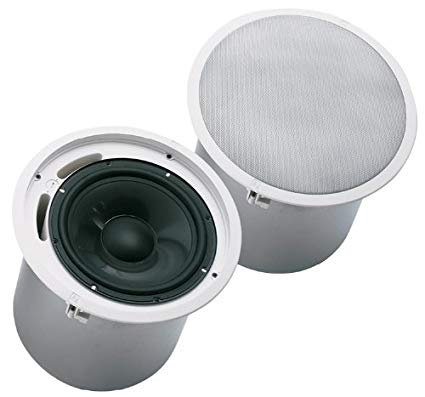

Electro-Voice EVID C10.1 - 10" Ceiling Subwoofers - Pair

The Electro-Voice EVID C10.1 packs a large 10" subwoofer in a tuned high performance enclosure to give amazing low frequency performance down to 45Hz. The EVID C10.1 is one of the only quick mount ceiling subwoofers available on the market. Flexible installation and powerful low-end performance make this an ideal companion to any EVID model. Features a secure 4-point mounting system which makes installations fast and easy. Comes complete with mounting support ring and tile rails. No additional accessories needed for most installations.

• 10" High-Excursion Transducer for extended LF
• Low Pass Network with Overload Protection
• Front Baffle Wattage Tap Adjustment
• Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
• Includes tile bridge and mounting ring for easy installation
• Integrated ported enclosure for extended bass response

• Frequency Response (-10dB): 45 Hz - 180 Hz
• Coverage (Conical): 180°
• Power Handling: 150 W Cont./600 W Peak
• Sensitivity (SPL 1W/1m): 94 dB
• Max Calculated SPL: 120 dB
• Impedance: 8 Ohms nominal (transformer bypass)
• Network: 12 dB/oct
• LF Transducer: 10 in. (200 mm)
• Transformer Taps:
• 70V: 7.5, 15, 30 or 60W
• 100V: 15, 30 or 60W
• Bypass: 8 Ohms
• Connectors: Phoenix type removable w/ screw terminal& "loop-thru", 12-gauge wire
• Enclosure Material:
• Baffle: UL 94V-O rated ABS
• Backcan: Zinc plated steel
• Grille: Perforated powder coated steel with safety tether
• Support Hardware: Tile bridge, backing plate support,cutout template, paint shield
• Dimensions: 11.9" Height x 12.6" Diameter (303 x 320mm)
• Cutout Size: 12.75" (324mm)
• Net Weight (each): 15.5 lbs (7.0 kg)
