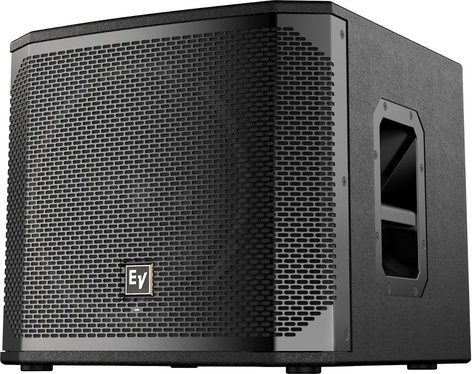

Electro-Voice ELX200-12SP-US 12" 1200W Powered Subwoofer

Powerful low-frequency output and punch in a compact footprint.

The ELX200-12SP 12” Powered Subwoofer features a 1200W high-efficiency Class D power amp with integrated QuickSmartDSP, and delivers up to 129dB SPL utilizing a 12” EVS-12L woofer. Easy setup and monitoring comes via three presets (Music, Live, Club), sub/top system-match crossovers, 3-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. It’s ideal for portable and installed applications, with a lightweight and compact 15mm wood enclosure, integrated M20 threaded pole mount plate, and two-handle design for easy lifting. The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows control and configuration/monitoring of up to six ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers.

Features

  • 1200W powered 12" subwoofer
  • 49Hz - 135Hz frequency response
  • EVS-12L 12" woofer
  • Optimized wood enclosure with protective polyurea finish
  • 129dB peak SPL

Specifications

  • Enclosure Material: 15 mm plywood with EV Coat
  • Frequency Range (-10 dB): 41 Hz – 165 Hz
  • Frequency Response (-3 dB): 49 Hz – 135Hz
  • Grille: 18 AWG steel with powder coat
  • LF Transducer: EVS-12L 12" (300 mm)
  • Low Pass Frequency: Adjustable: 80 Hz, 100 Hz, 120Hz,150 Hz
  • Max. SPL/1m (calc): 129dB
  • Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
  • Power Rating: 1200W
  • Powered or Passive: Powered
  • Shipping Weight: 49.2 lbs (22.3 kg)
  • Speaker Type: Subwoofer
  • Net Weight: 42.1 lbs (19.1 kg)
  • Dimensions (HxWxD): 15.6" x 17.5" x 18" (397 x 445 x 457 mm)
  • Color: Black
  • Connector Type: (2) XLR/TRS combo jacks and (2) XLR link outputs
