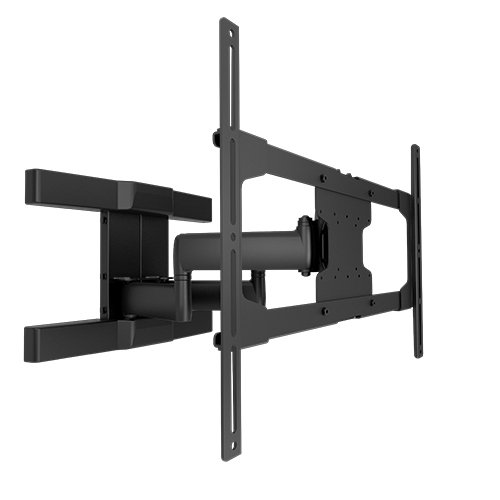

Chief ODMLA25 - Articulating Outdoor Wall Mount

Designed to support all-weather outdoor installations and enhance the viewing experience. The ODMLA25 Articulating Outdoor Wall Mount provides full motion for optimal viewing from many positions. The mount features a weatherproof design including protective outdoor-rated finishing and stainless-steel hardware.

Pair with most indoor or outdoor displays for outdoor digital signage, outdoor living and humid indoor environments.

Key Features

• Weatherproof design with outdoor-rated finishing and stainless-steel hardware
• 150 lbs (68 kg) weight capacity
• More than 20” (508 mm) extension range
• Universal interface fits displays with 75x75mm to 709x444mm VESA patterns
• Centris technology provides +5/-15 degrees of effortless fingertip tilt
• Integrated cable management provides a clean install
• Quick-connect interface for easy mounting
• Quick-releasable pin locks display in recessed “home” position
• Padlock feature for additional security (padlock not included)

• Color: Black
• Maximum Extension: 21.66" (550 mm)
• Minimum Depth: 4.88" (124 mm)
• Mounting Pattern Compatibility (Universal Versions): 75 x 75 mm - 709 x 444 mm
• Notes: ODMLA25 may be installed to a bare 8" concrete wall if 5/16 x 3" Buildex® Tapcon® anchors with Blue Climaseal® coating (not included) are used in place of lag bolts (D) provided.
• Overall Dimensions (H x W x D): 18.5 x 29.45 x 4.88" (470 x 748 x 124 mm)
• Solution Type: Universal
• Tilt: +/-15˚
• Typical Screen Sizes: 32 - 80"
• Wall Stud Compatibility In: 16"
• Weight Capacity: 150 lbs (68 kg)
• Orientation: Landscape
